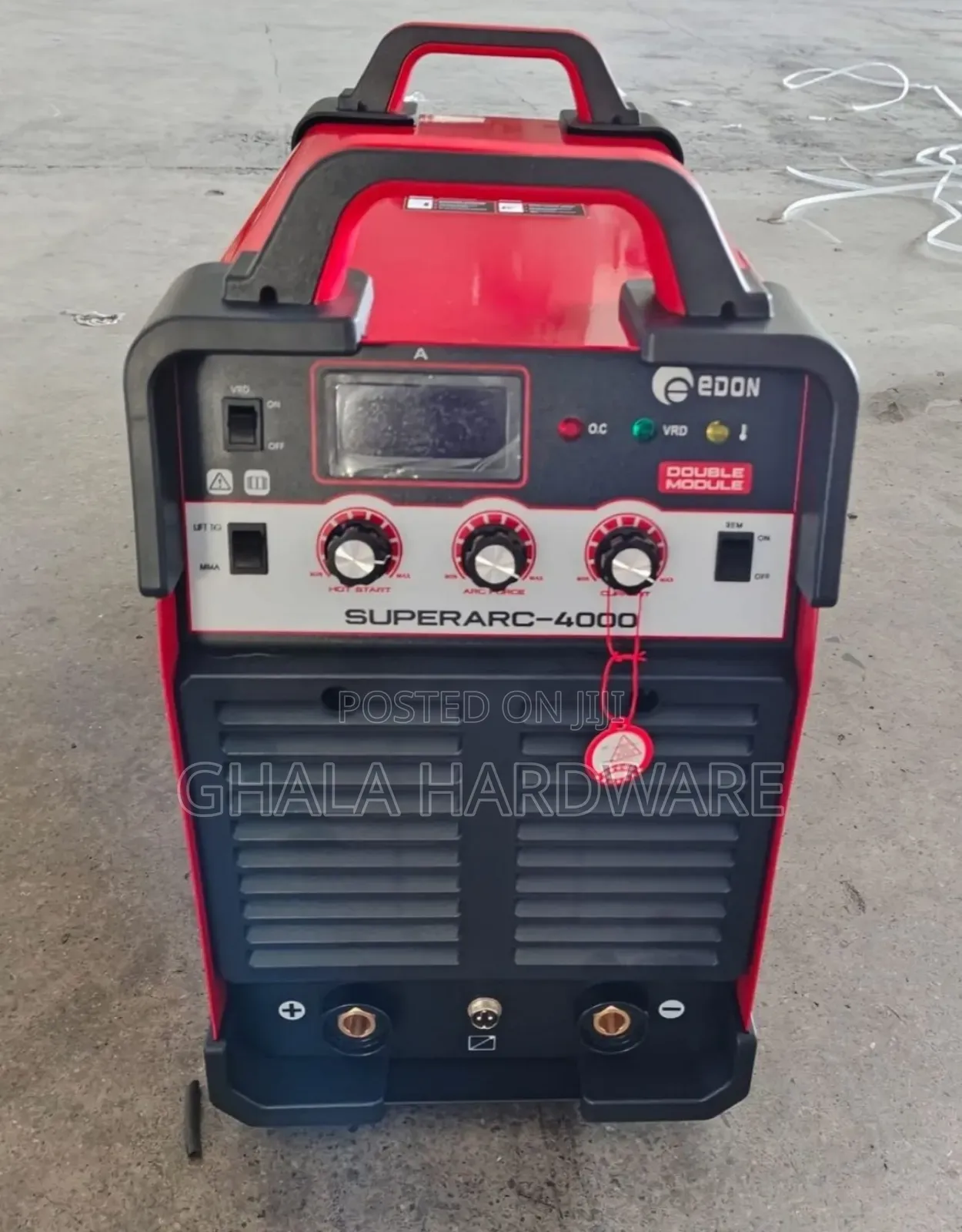

Model name: edon superarc-4000 (3-phase inverter mma machine)
input voltage: 380 v ac, three-phase power supply
output current range:
approximately 20 a to 350 a (per e-catalog listing)
some listings mention output up to 380 a
duty cycle: 60% at rated output
maximum electrode size supported: up to 5 mm
power consumption: around 14 kva
open-circuit voltage: ~68 v
technology & features: inverter-based mma (stick) welding, including digital display, hot start, anti-stick, and arc force for enhanced arc stability and usability
protection & insulation: rated ip21 (standard arc welder protection) with f-class insulation
