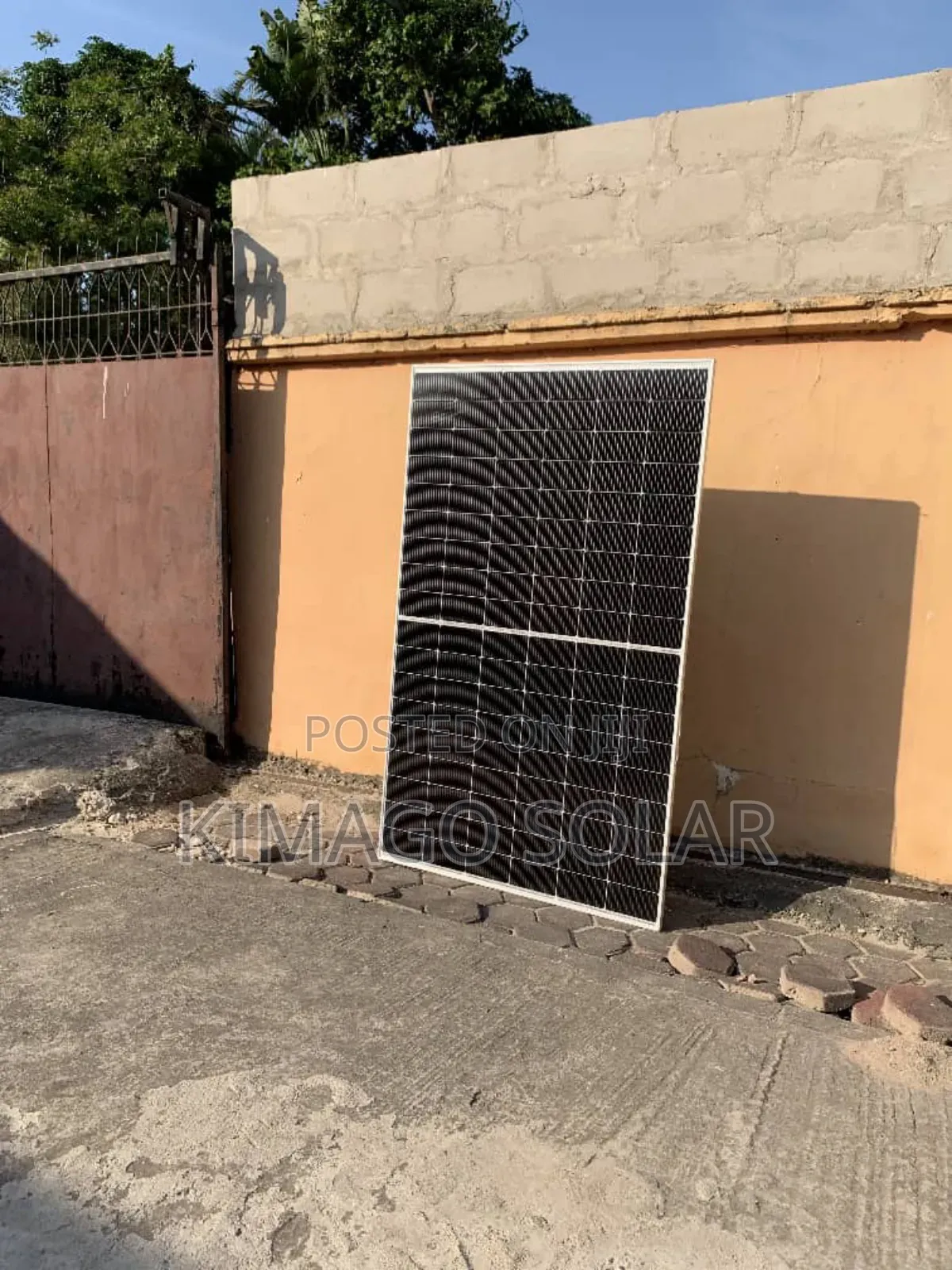

Solar panel 200w
cell type: mono
peak power(pmax): 200w
rated voltage (vmp/v): 30v
rated current (lmp/a): 6.67a
open circuit voltage(voc): 36v
short circuit current(lsc): 8a
module efficiency(%): 19.5%
maximum system voltage (iec):1500v dc
maximum series fuse rating(a): 15a
power tolerance (w): ±5%
pmaxtemperature coefficients(w/°c): -0.36%/°c
voc temperature coefficients(v/°c): -0.28%/°c
isc temperature coefficients(a/°c): +0.05%/°c
operating temperature(°c): -40~+85°c
dimensions(mm): 1330*770*30mm
