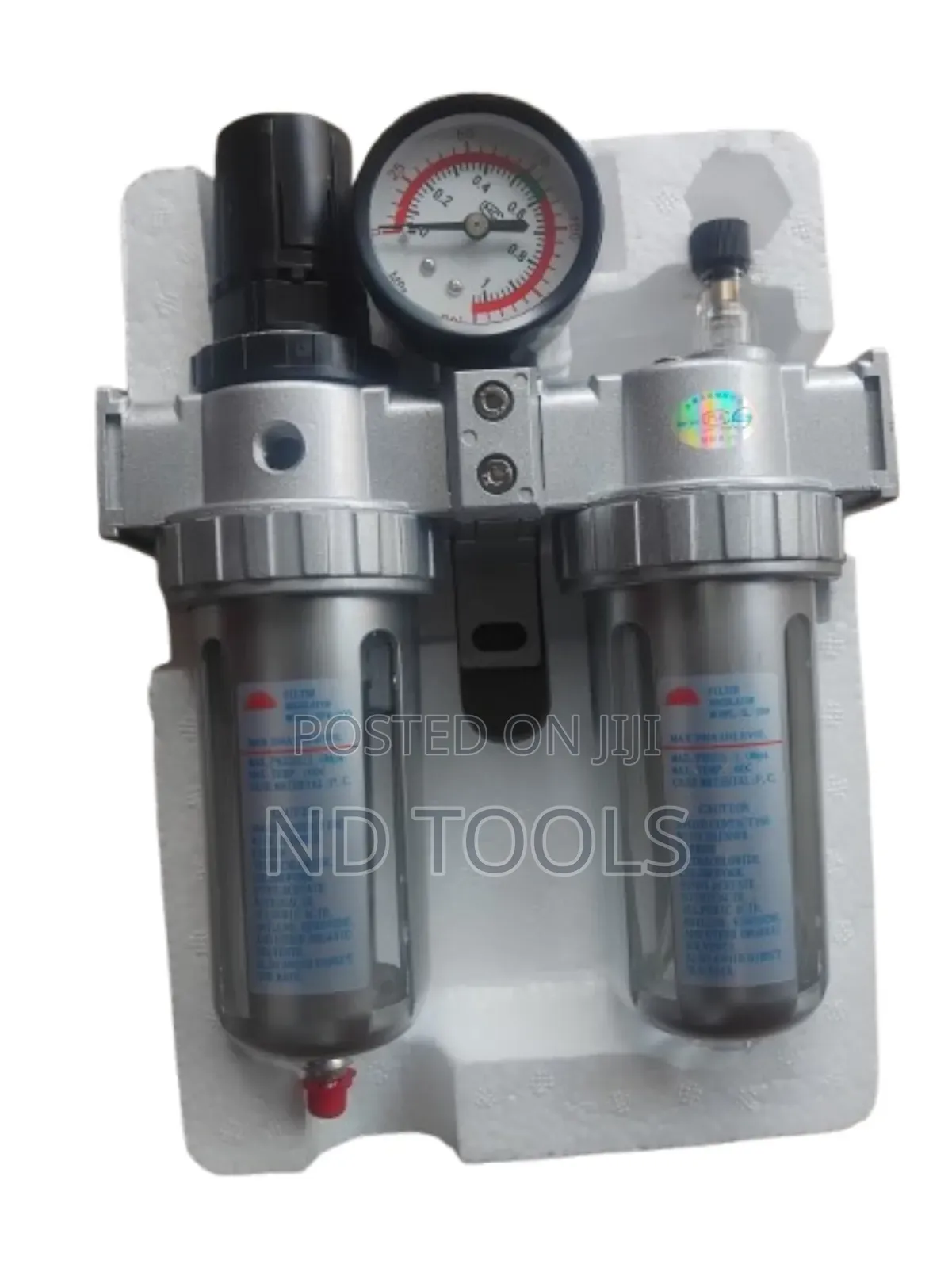

Air Filter Regulator SRF 200

+1

Other

Chapa

Nyingine

Aina

Chapa Mpya

Hali

Is a combined unit that filters out particulates and moisture from compressed air and regulates the pressure to a consistent level required for downstream pneumatic tools or equipment. Specificatio of air filter regulator sfr 200 / pneumatic air filter - model sfr 200 -port size 1/4" npt or bsp -max input pressure 1.0 mpa (145 psi) -regulated pressure range 0.05 – 0.85 mpa (7 – 120 psi) -filtration accuracy 40 μm (standard), 5 μm (optional) -bowl capacity ~15-25 cc - operating temperature 5 – 60°c (41 140°f) - body material aluminium alloy - bowl material polycarbonate with metal guard Weight ~250 – 350g - pressure gauge port for monitoring output pressure
