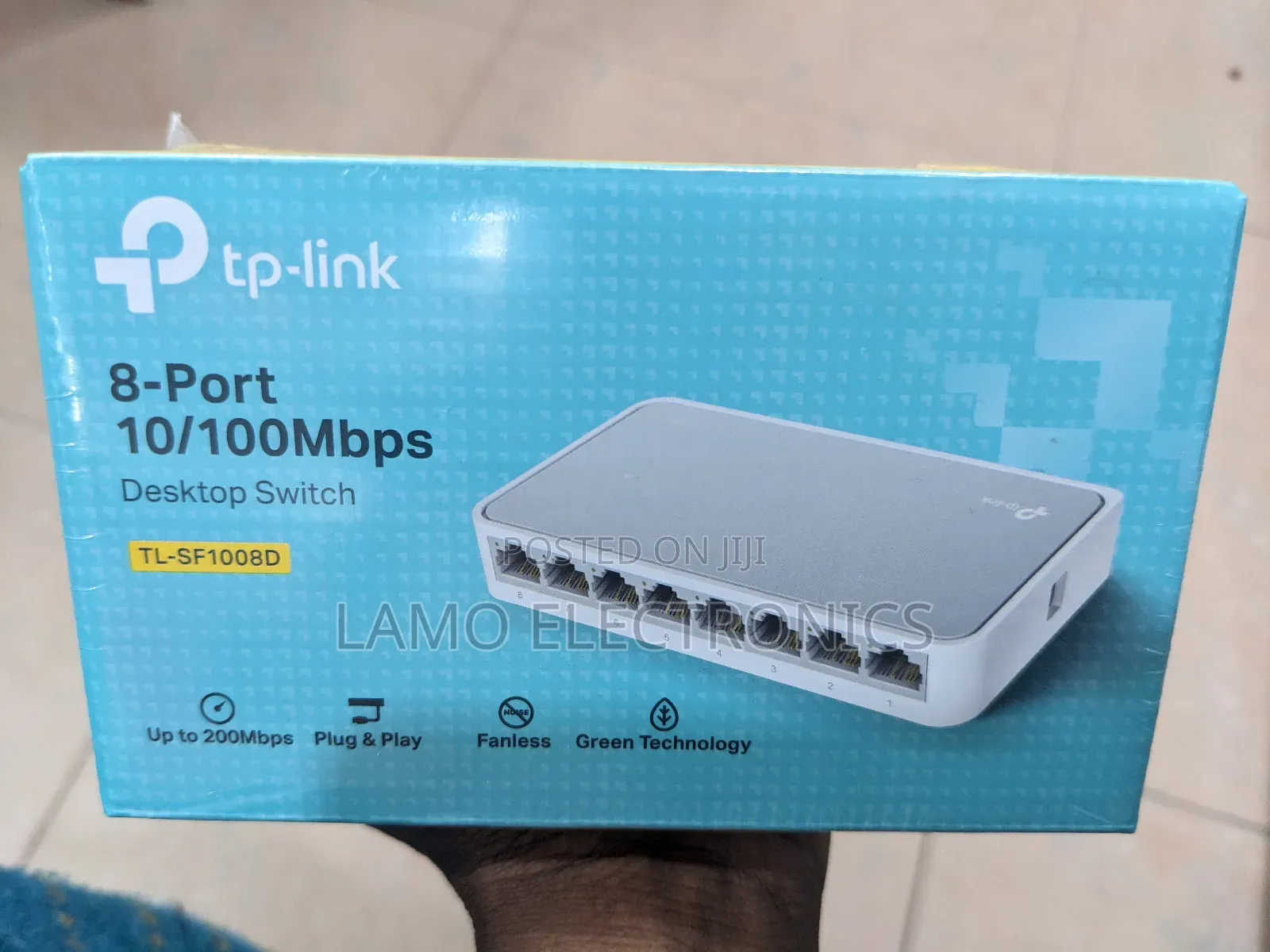

Specifications for the TP‐Link TL‐SF1008D, an 8‐port, unmanaged desktop Fast Ethernet switch (10/100 Mbps):
Hardware & Ports
Ports: 8 × RJ‐45 10/100 Mbps with auto‐negotiation and Auto‐MDI/MDIX — no cross‐over cables needed
Switching Capacity: Non‐blocking design, full wire‐speed forwarding; up to 1.6 Gbps backplane bandwidth
Buffer Memory: 768 KB packet buffer
Data Rates: 10/100 Mbps (half‐duplex); 20/200 Mbps (full‐duplex)
Advanced Features
Flow Control: IEEE 802.3x for full duplex; back‐pressure for half duplex
Jumbo Frame Support: Up to 2 K on most sites, some mention up to 10 K
Green Ethernet: Auto power-adjust based on link status and cable length; saves ~60–73% energy
Fanless Cooling: Silent operation
