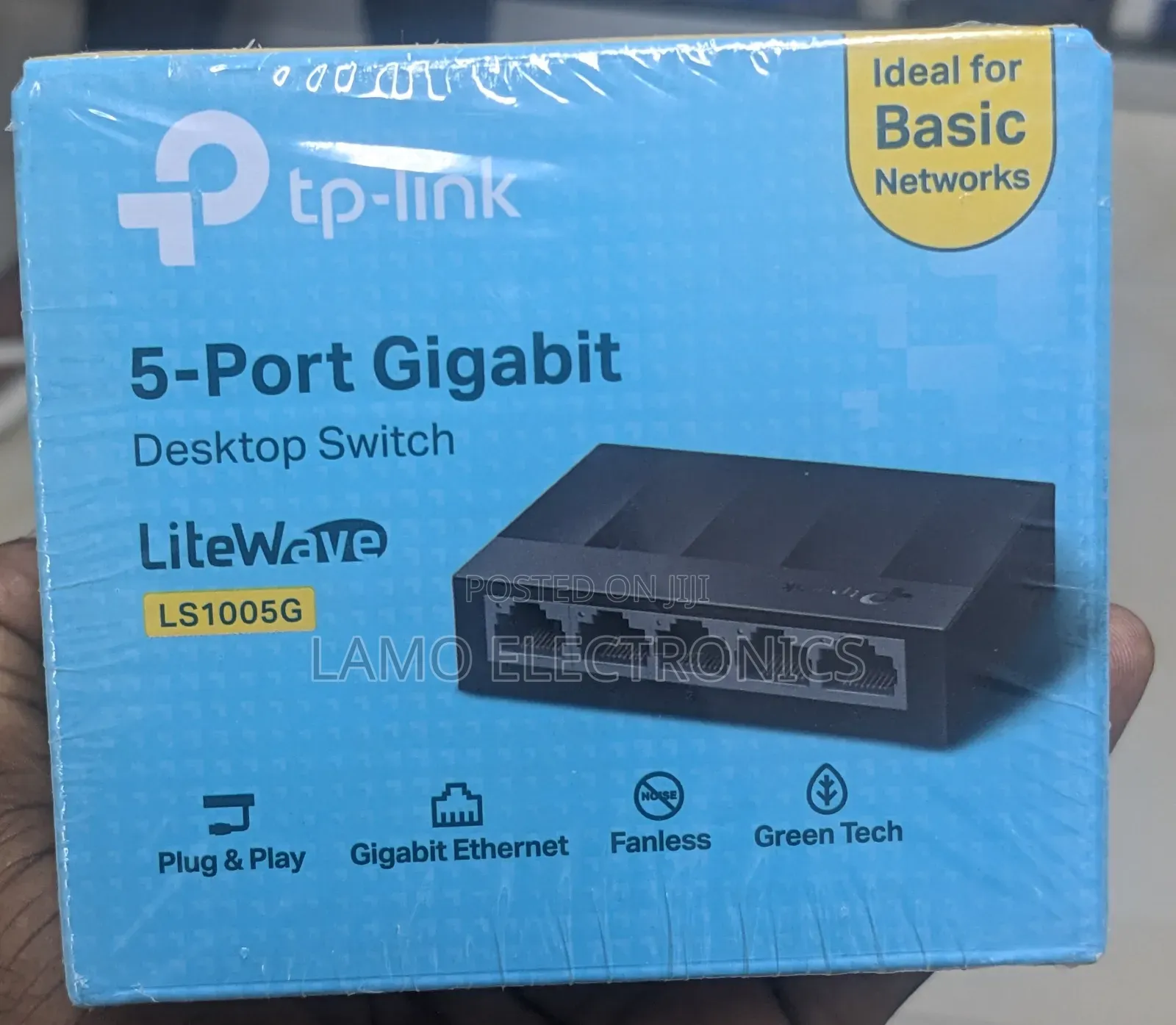

The TP-Link LS1005G is a 5-Port Gigabit Ethernet Switch. Here are its key specifications:
1. Ports:
5 × Gigabit Ethernet (10/100/1000 Mbps) ports.
2. Data Transfer Speed:
Supports 10/100/1000 Mbps auto-negotiation speeds, providing up to 1000 Mbps (1 Gbps) for each port.
3. Network Standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab (Gigabit Ethernet).
4. Auto MDI/MDIX:
Automatically detects the type of Ethernet cable (straight-through or crossover) and adjusts accordingly.
5. Non-blocking Switching Capacity:
10 Gbps switching capacity.
6. Power Supply:
Powered via a DC 5V/0.6A power adapter (included).
7. LED Indicators:
Power, Link/Act, and speed status LEDs.
8. Plug and Play:
No configuration required; simple setup with auto-learning and auto-aging of MAC addresses.
9. Design:
Compact, desktop or wall-mountable design.
