Uniview

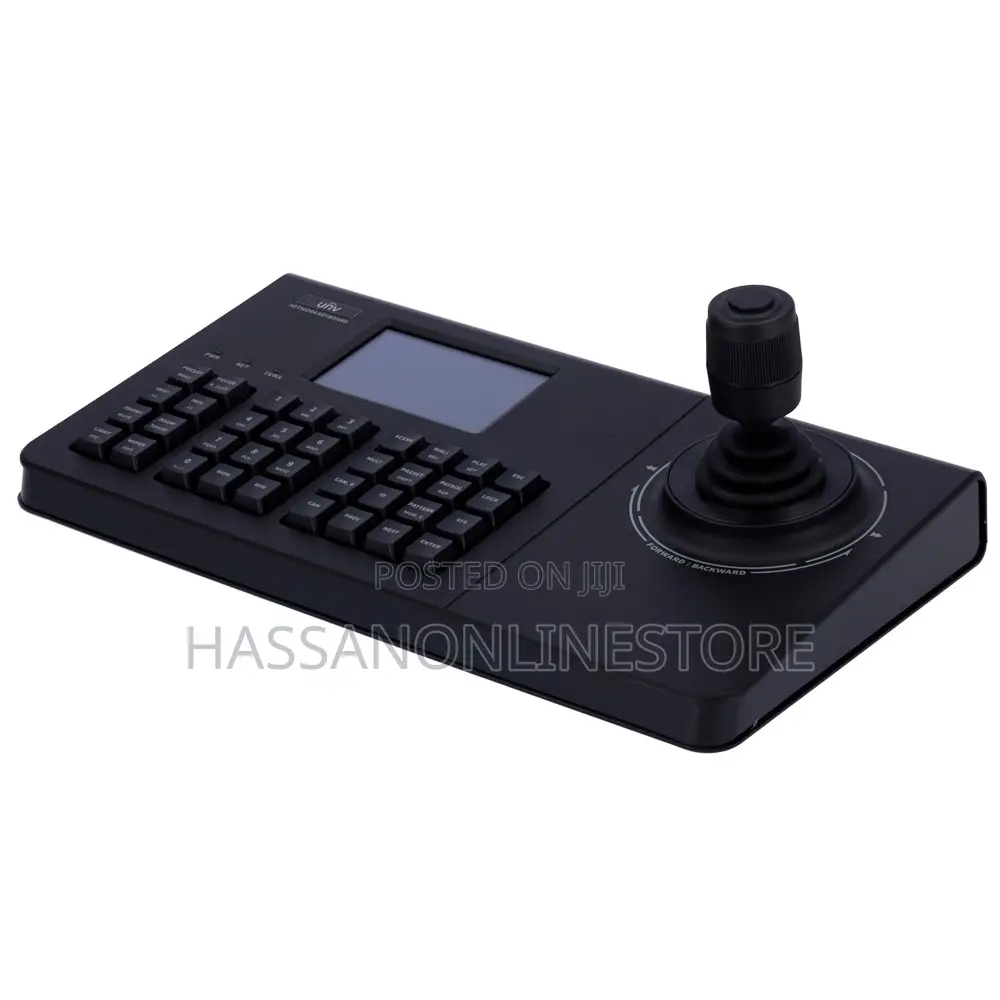

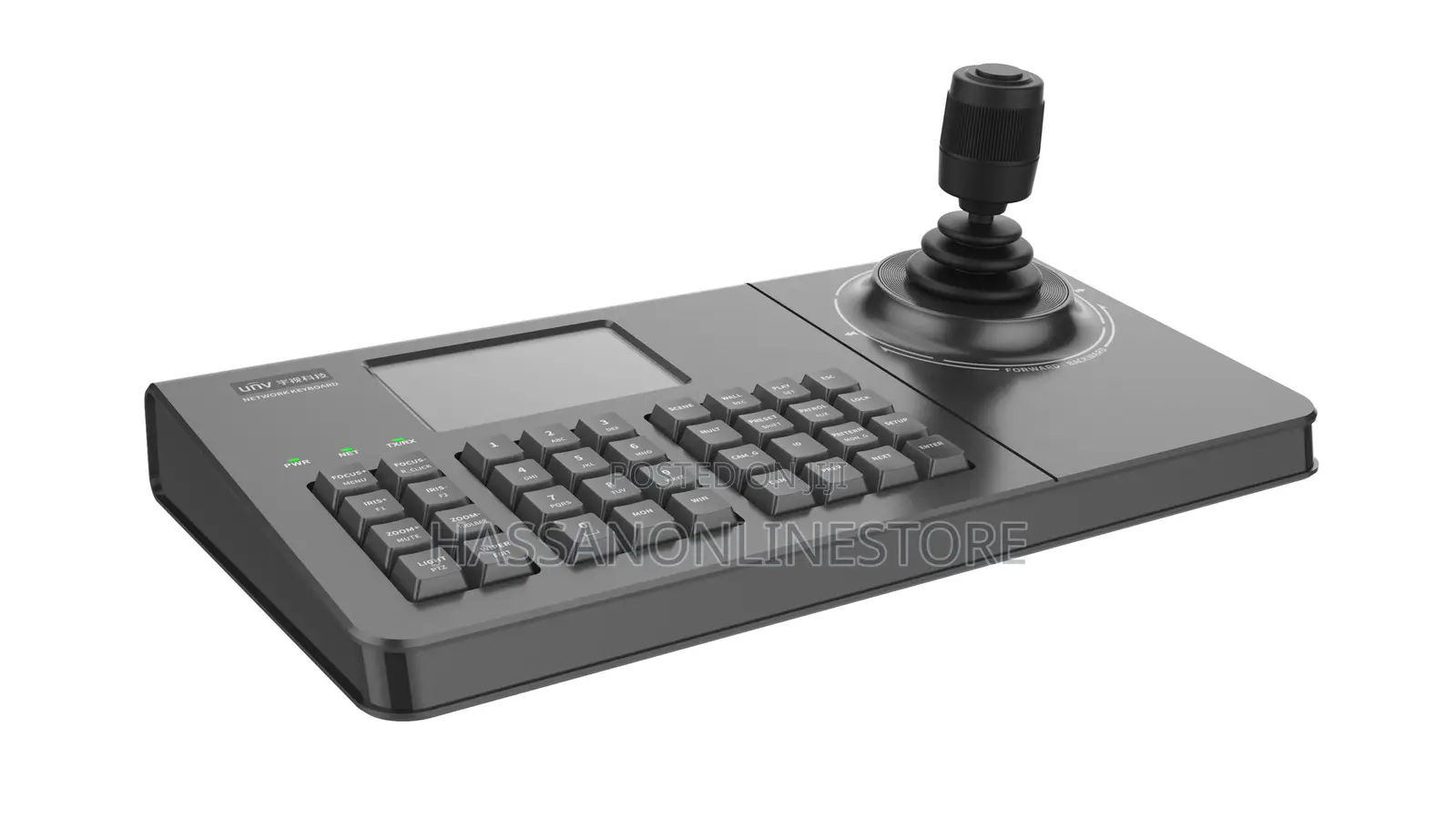

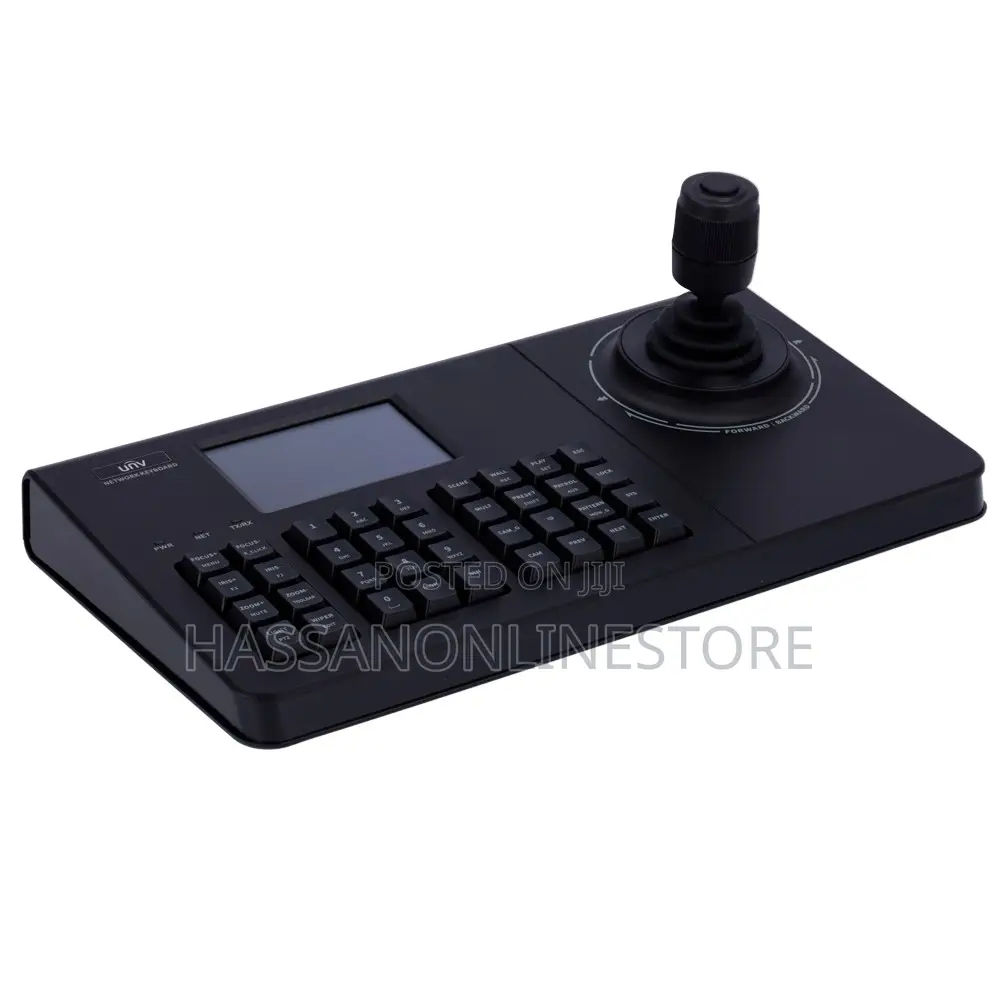

network control keyboard
for uniview nvr control
connections rs232, rs485, usb and rj45
4 axis joystick
lcd screen
supports multiple devices and users
screen size 4 inches
joystick four-dimensional joystick
max power consumption (w) <5
product dimensions (w*h*d)(mm) 345.00*189.82*128.16
weight (kg) 1.2
operating temperature -10°c to 55°c
operating humidity 10% to 90% rh, noncondensing
other interfaces description
serial port 1*rs232 (db9, reserved)
2*rs485 (half-duplex, reserved)
console 1*console/rs485 shared interface (rj45)
usb 2*usb (reserved)
network interface 1*rj45, 10m/100m/1000m based-t adaptive interface
power dc 12v
rst 1*reset button
