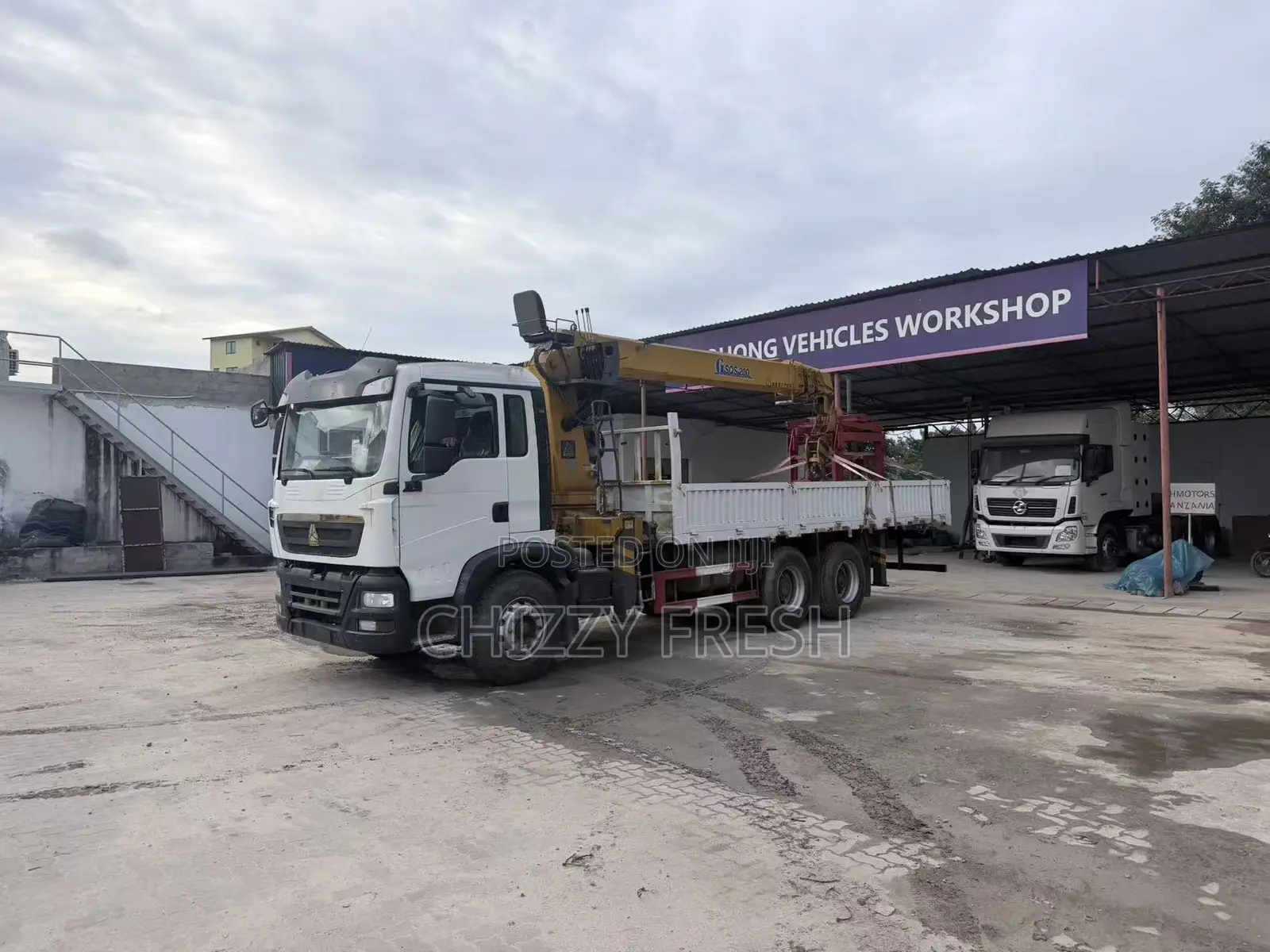

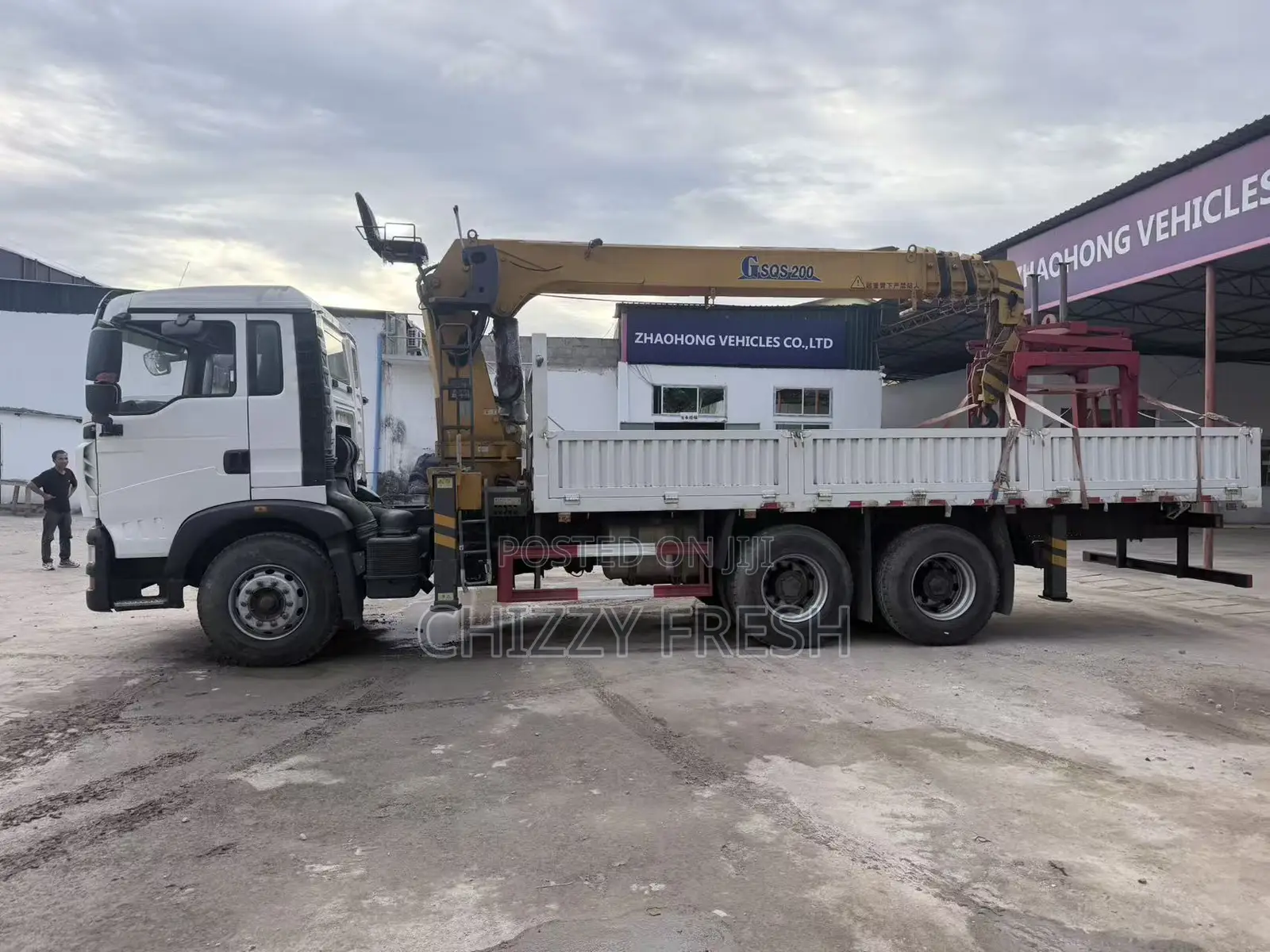

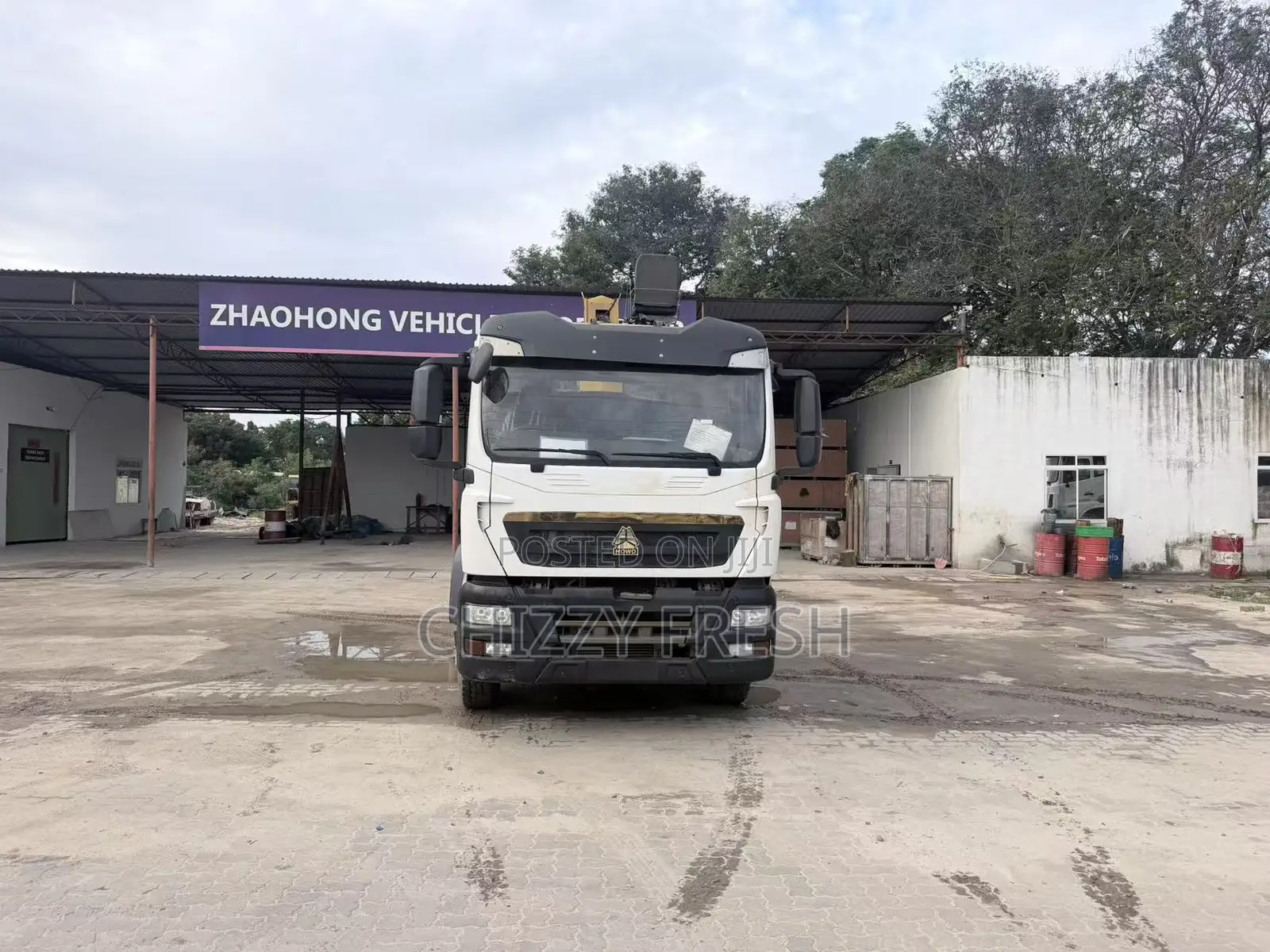

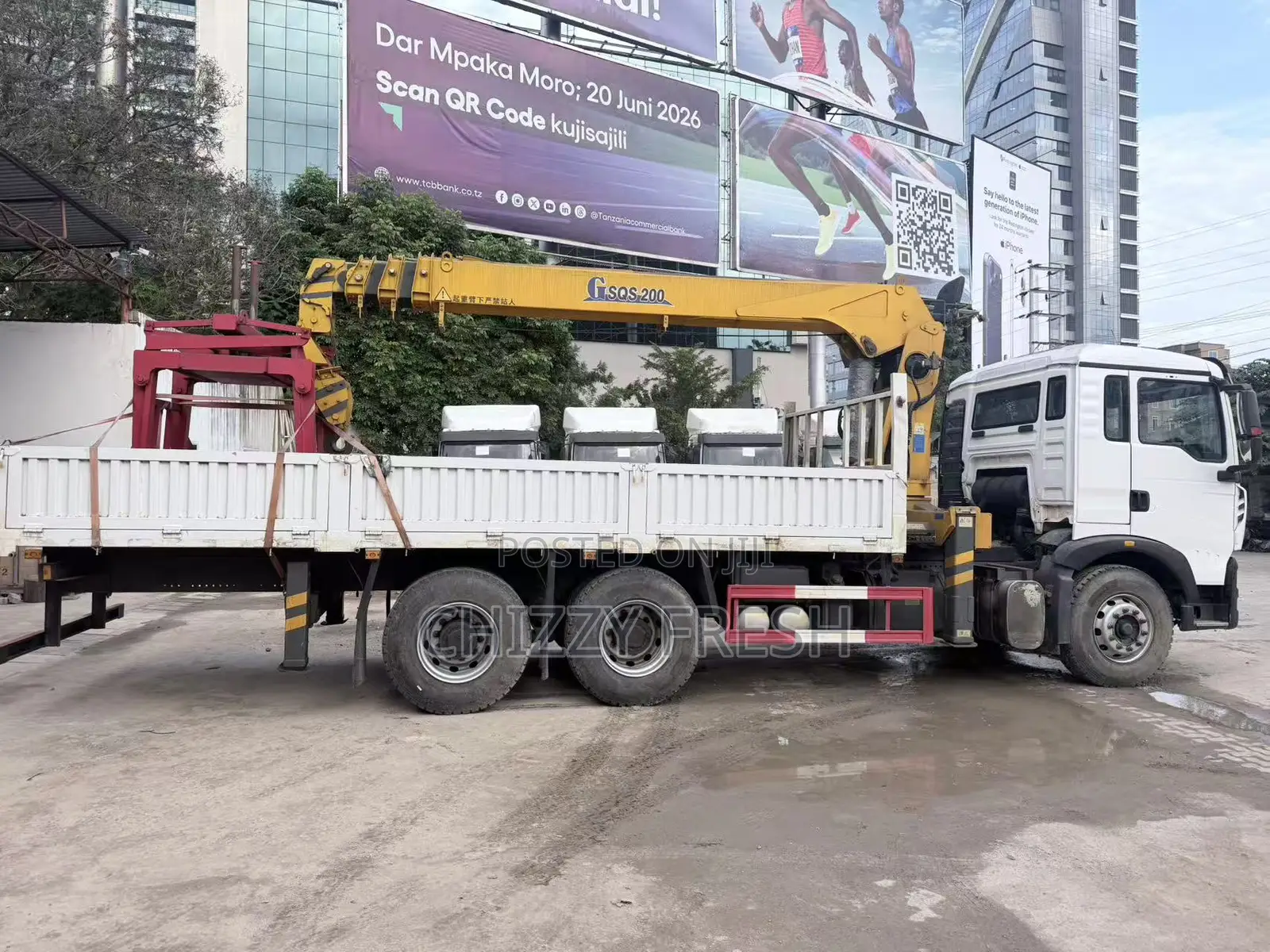

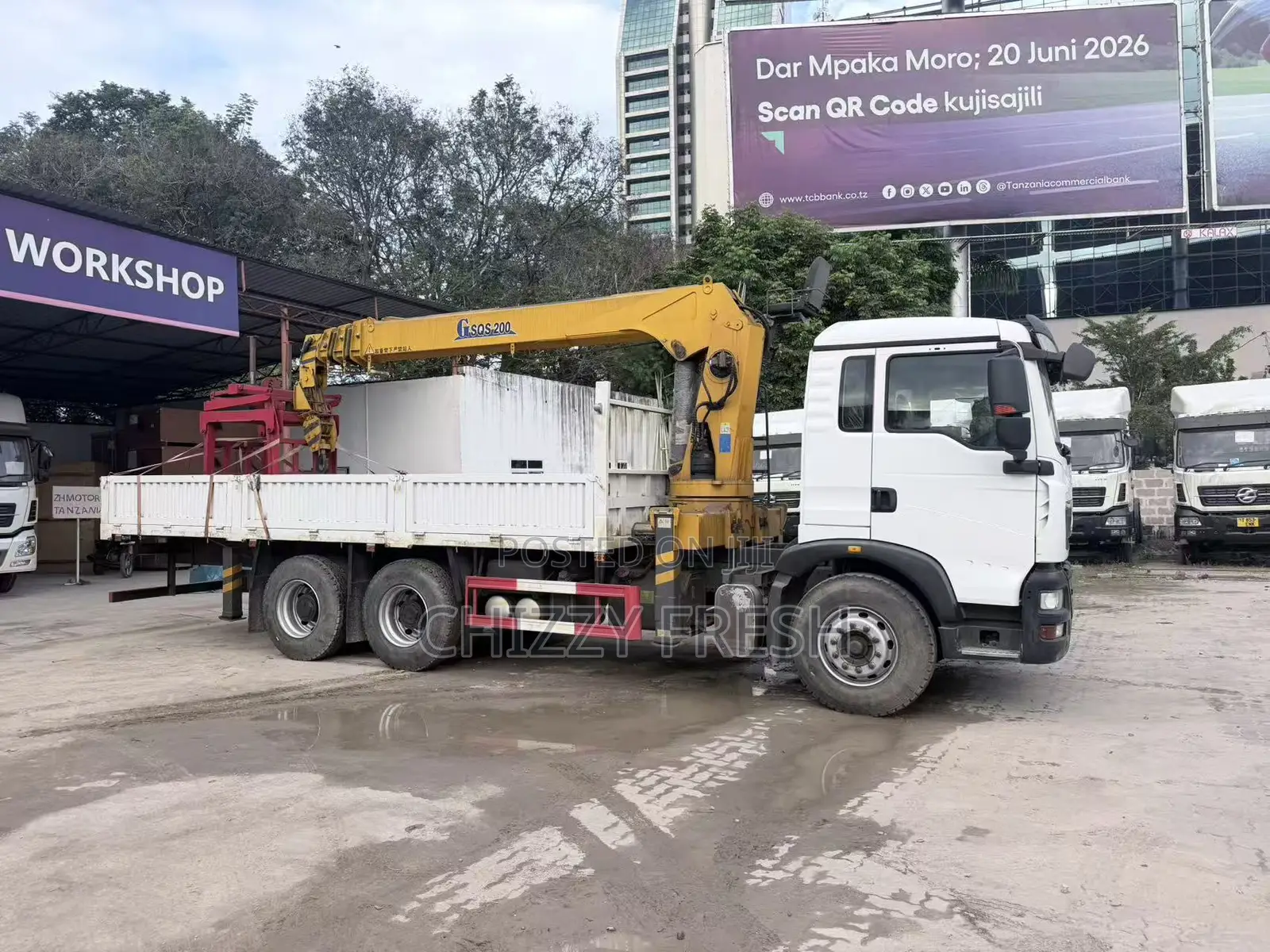

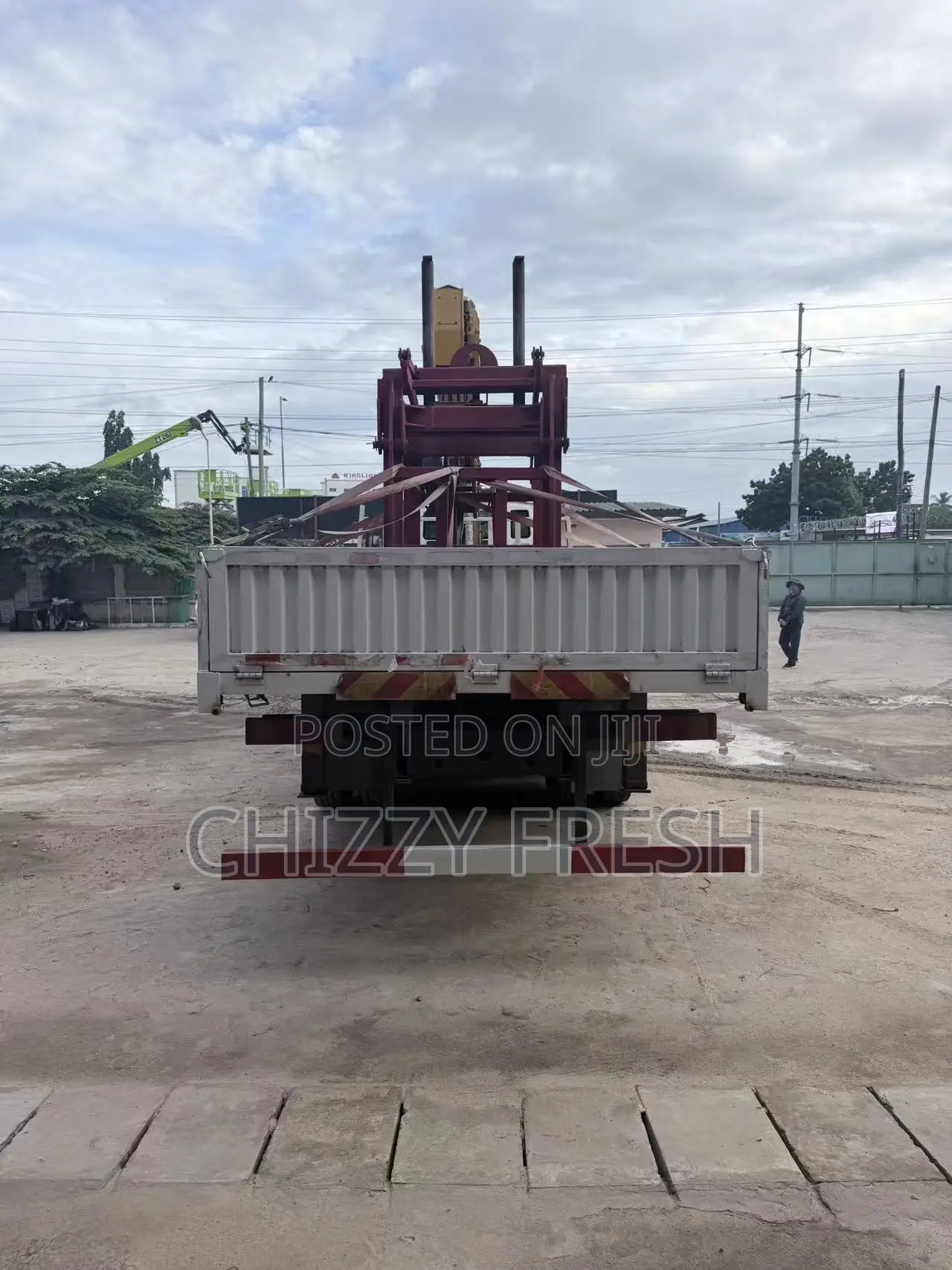

8-Ton Howo Chassis Truck Crane

+1

Crane Trucks

Type

CNHTC Howo

Make

HOMAN

Model

Used

Condition

2025

Year of Manufacture

White

Color

Manual

Transmission

Diesel

Fuel

6870cc

Engine Size

340hp

Horsepower

6

Number of Cylinders

10

Number of Tires

387ft

Length

8t

Capacity

Other

Wheel Bolt Pattern

No

Exchange Possible

Chassis & drivetrain: Rear eight-wheel drive (6x4). Sinotruk HOWO Gold Mark TX cab, one and a half row. MAN engine, 340 hp. 12-speed manual transmission. 290mm frame, double layer with local triple layer reinforcement. Overall length: 11.8 m. Front axle: 6.5 tons. Dual rear axle: 16-ton hub reduction axle. Tires: 12R22.5 tubeless (10 tires total). Wheelbase: 7.175 m. Fuel tank: 460 liters. Cab features: Electric windows, air conditioning (standard), air brake system (spring brake). Cab color: white. Crane & cargo body: 8-ton 4-section straight boom crane, top operation. Working radius: 15 m. 360° fully hydraulic slewing. Outriggers: single-chamber hydraulic rear outriggers. Through subframe. Cargo box size: 6500×2500×600 mm. Floor: 5 mm checkered plate, sides: 3 mm reinforced. Mechanical brick grapple, size 1200×800×1200 mm. english
