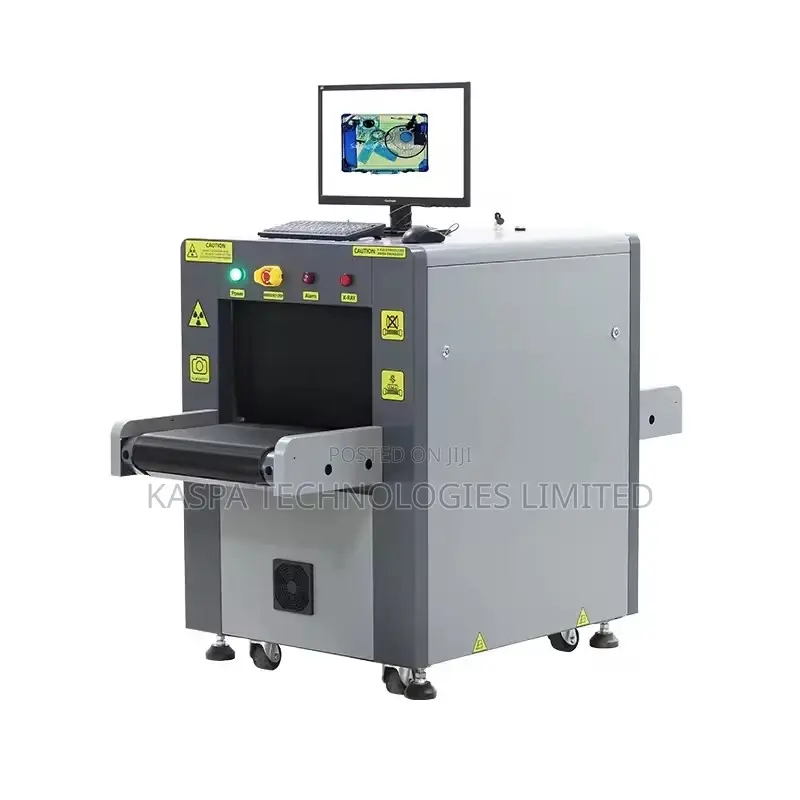

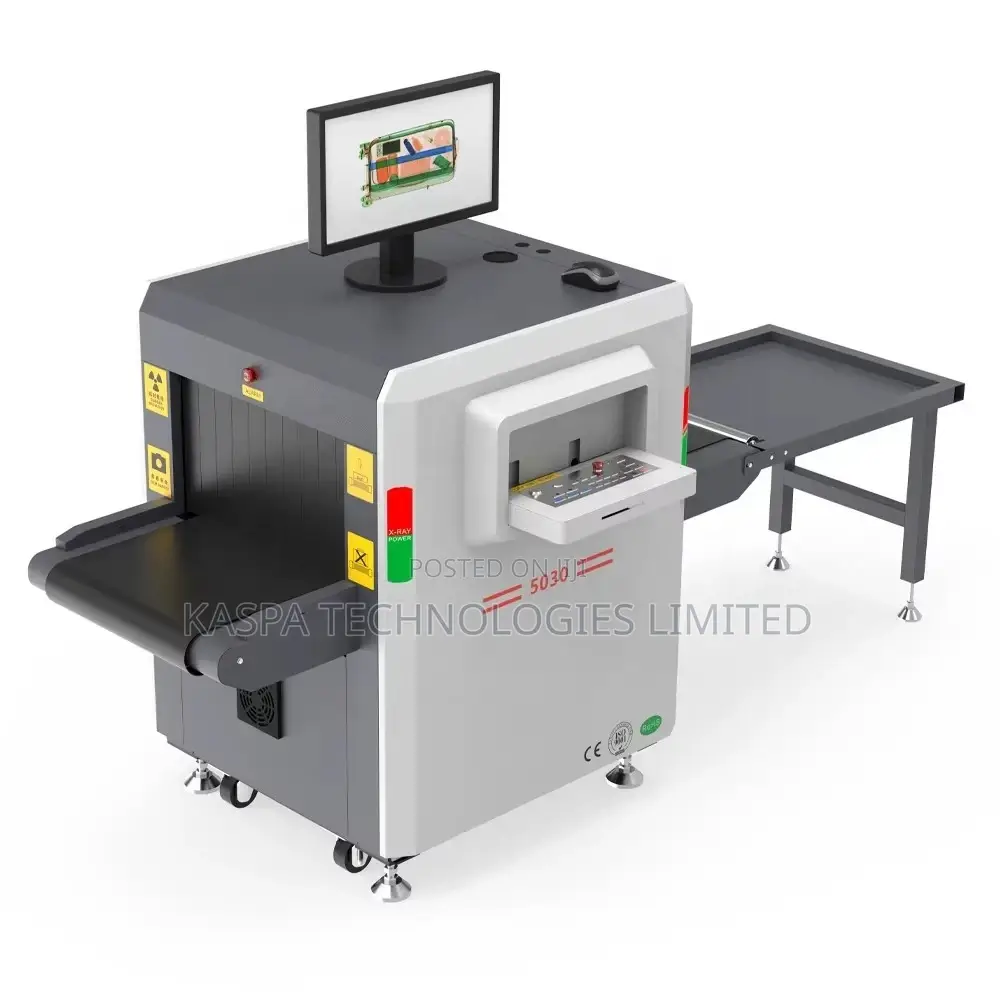

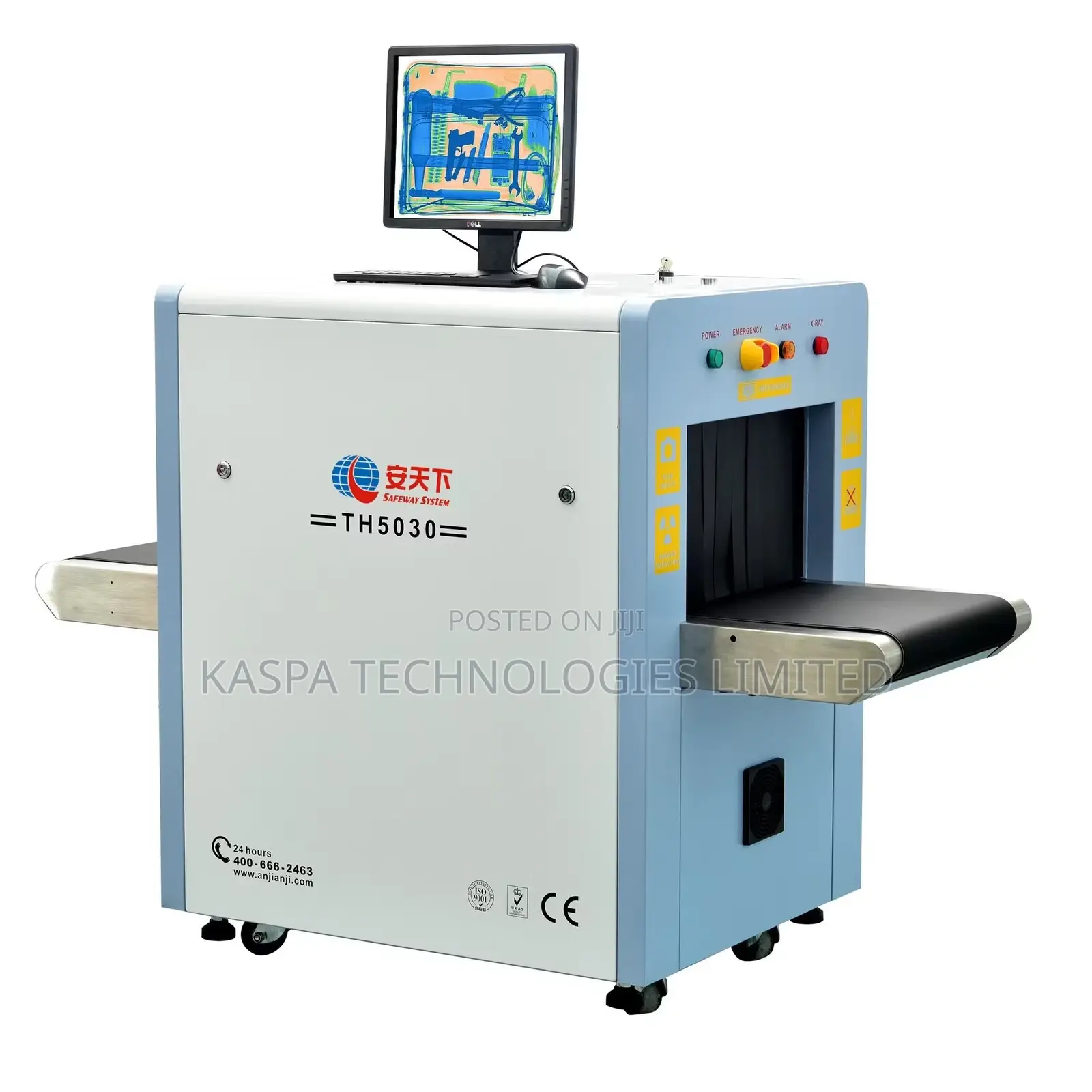

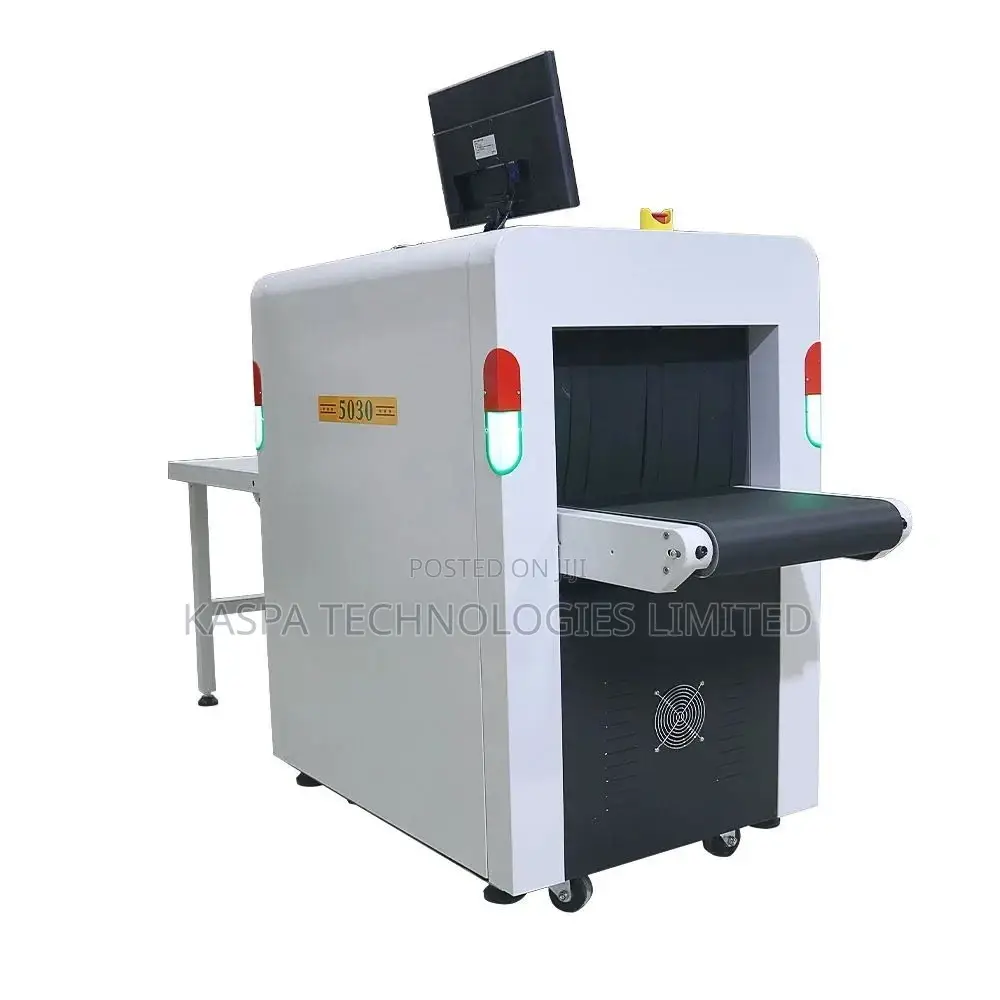

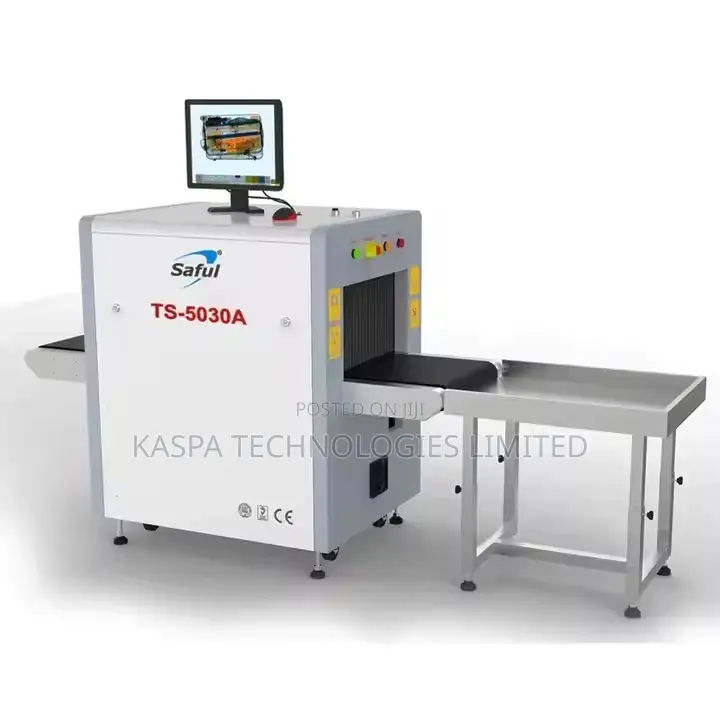

X-ray Baggage Scanner
Baggage Scanners
Type
Brand New
Condition
Other
Brand
X-Ray
Scanning Technology
Drugs, Explosive, Metal, Other
Threat Detection
305mm
Tunnel Width
10mm
Penetration
100kg
Conveyor Max Load
High-Resolution Imaging
Scanner Features
Store address
Dar es Salaam • Kinondoni
61270,Dar es salaam - Tanzania
Closed
• Mon - Sat, 08:00-16:00
OUR PRICE WITH VAT (VAT ALREADY INCLUDED)
Tunnel size(mm): 505(L)*305(W) ±5
Conveyor Speed(m/s): 0.2
Conveyor height(mm): 663
Conveyor Max Load(kgs): 100
X ray dose per each inspection: 3.0 μGy
X ray leakage: <1.0 μGy / h
Penetration: 14mm steel
Wire Resolution: dia 0.0787mm copper wire (AWG40)
Penetration Resolution: dia 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
Spatial resolution: Horizontal:dia1.0mm,Vertical: dia1.0mm
Power Consumption: max. 1KW
Noise: 56.3 dB
Film Safety: Guarantee ASA/ISO1600 Film
Anode Voltage: 100 kv
Anode power: 0.4-1.2mA (adjustable)
Generate angle: 80 degree upward
Generate direct: from bottom to top
Cooling / Duty Cycle: Oil Cooling /100%
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
TSh 20,000,000
