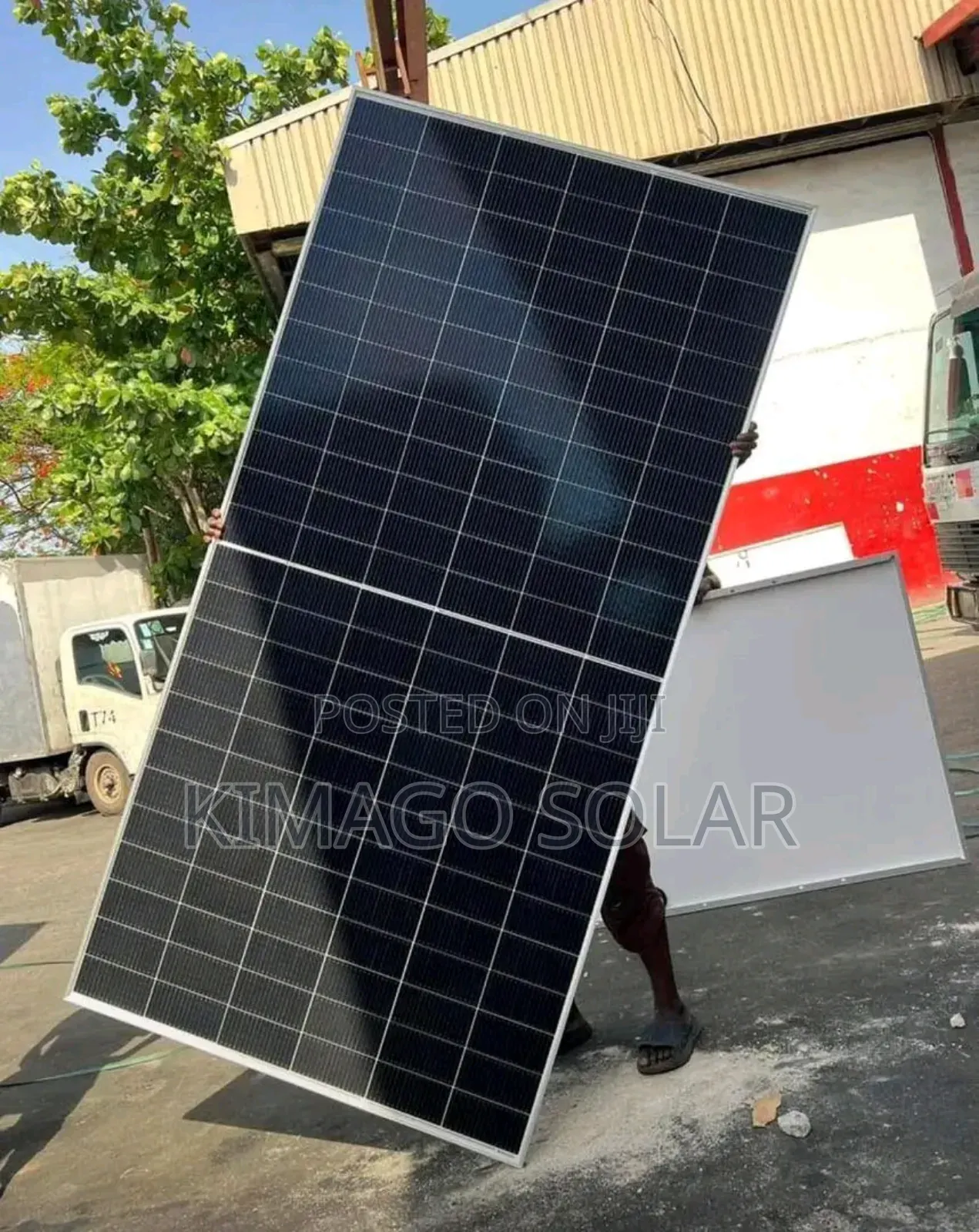

This is a high-efficiency 550W mono-crystalline solar panel, designed for large-scale energy systems and commercial-grade solar projects. Built with 144 high-performance solar cells (6×24 layout), it delivers excellent output under various environmental conditions.
Maximum Power (Pmax): 550W
Open Circuit Voltage (Voc): 49.82V
Maximum Power Voltage (Vmp): 42.00V
Short Circuit Current (Isc): 13.97A
Maximum Power Current (Imp): 13.10A
Maximum System Voltage: 1500V DC
Maximum Series Fuse Rating: 25A
Panel Dimensions: 2279 × 1134 × 30 mm
Weight: 25.8 kg
Cell Type: Mono-crystalline (6×24 arrangement)
Safety Class: Class II
Testing Conditions: 1000W/m2, 25°C, AM1.5
Power Tolerance: ±3% (Pmax/Voc), ±4% (Isc)
Positive Power Gain: 0W to +5W output boost with optimized cell selection
