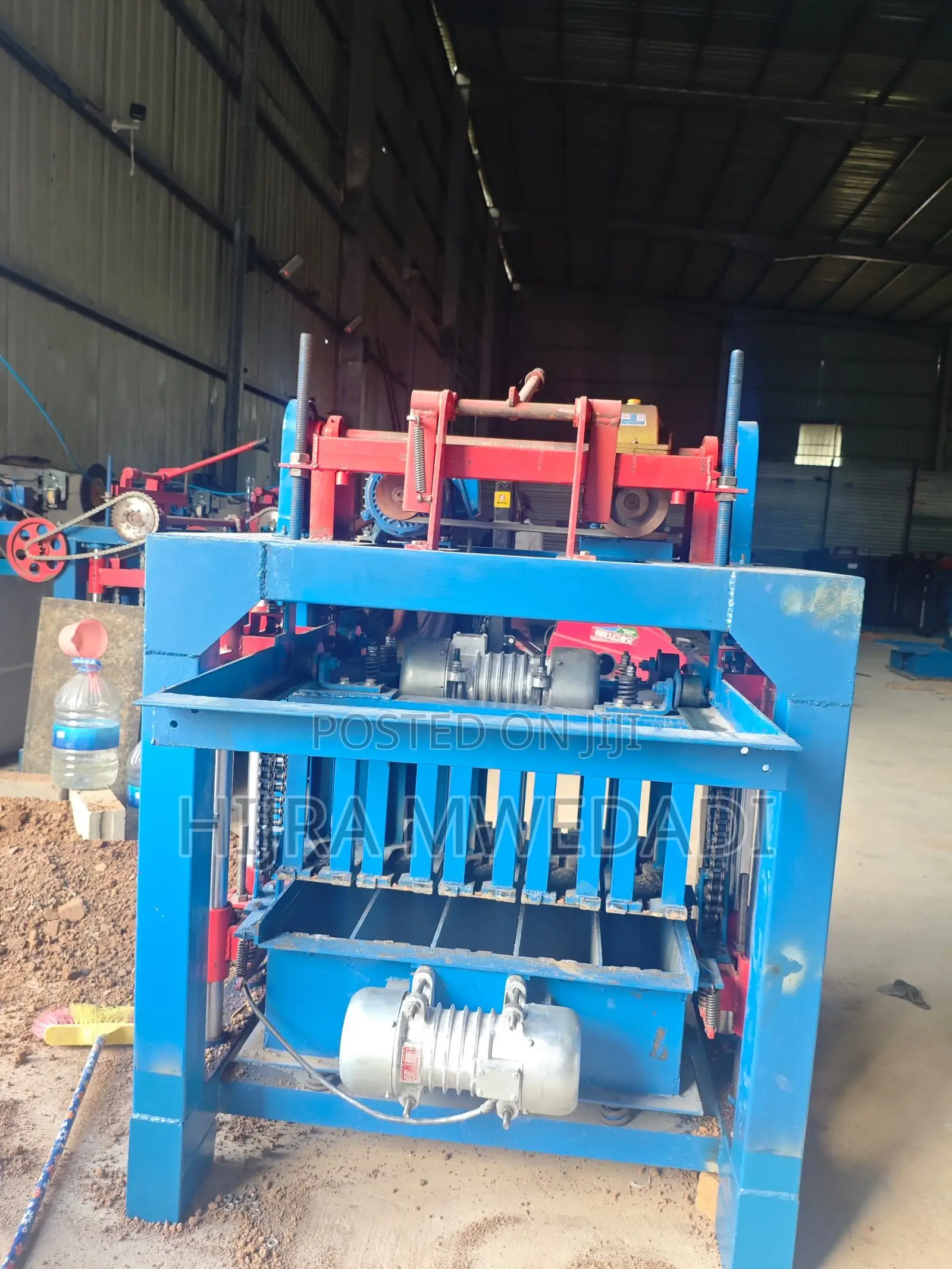

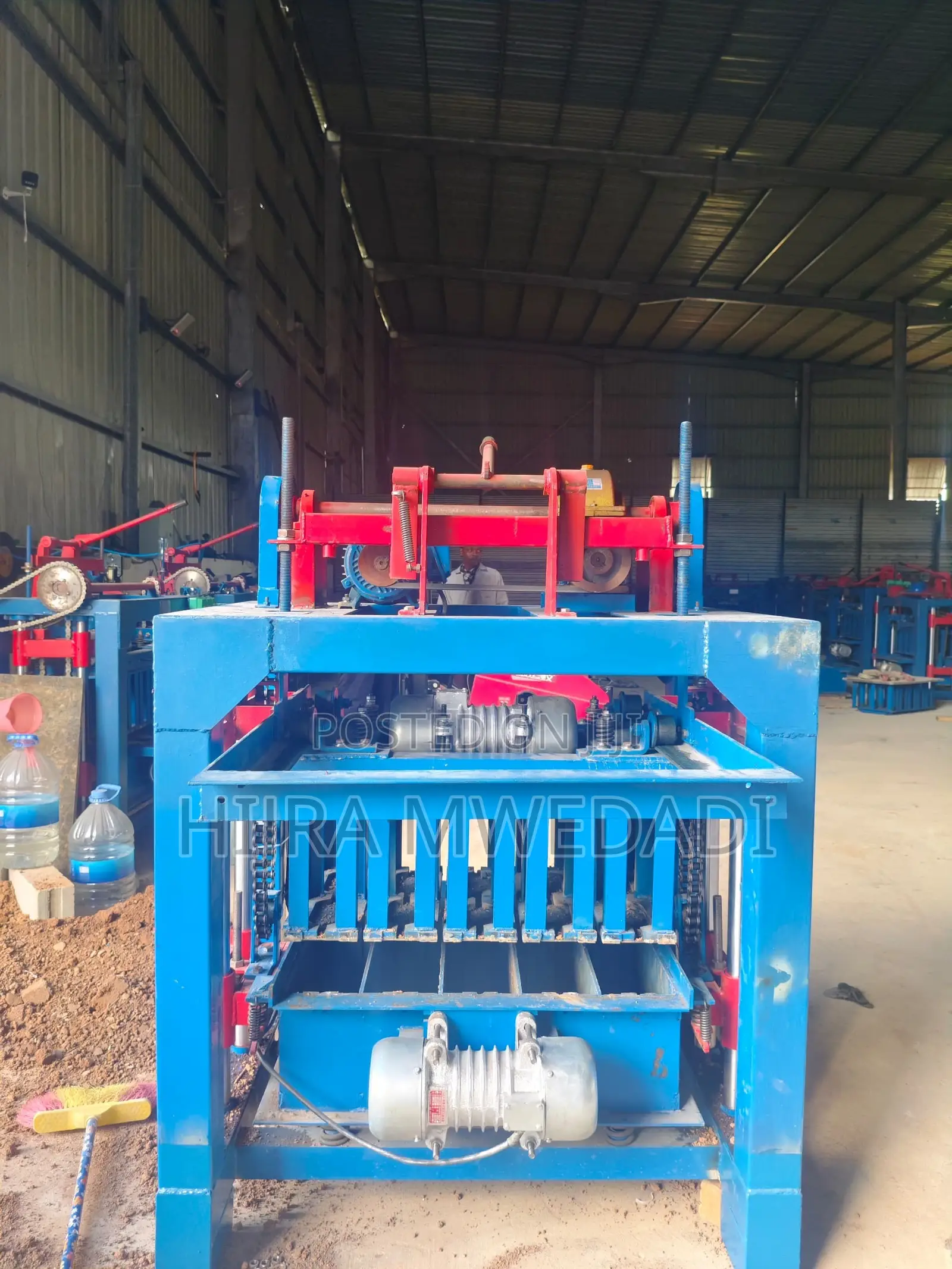

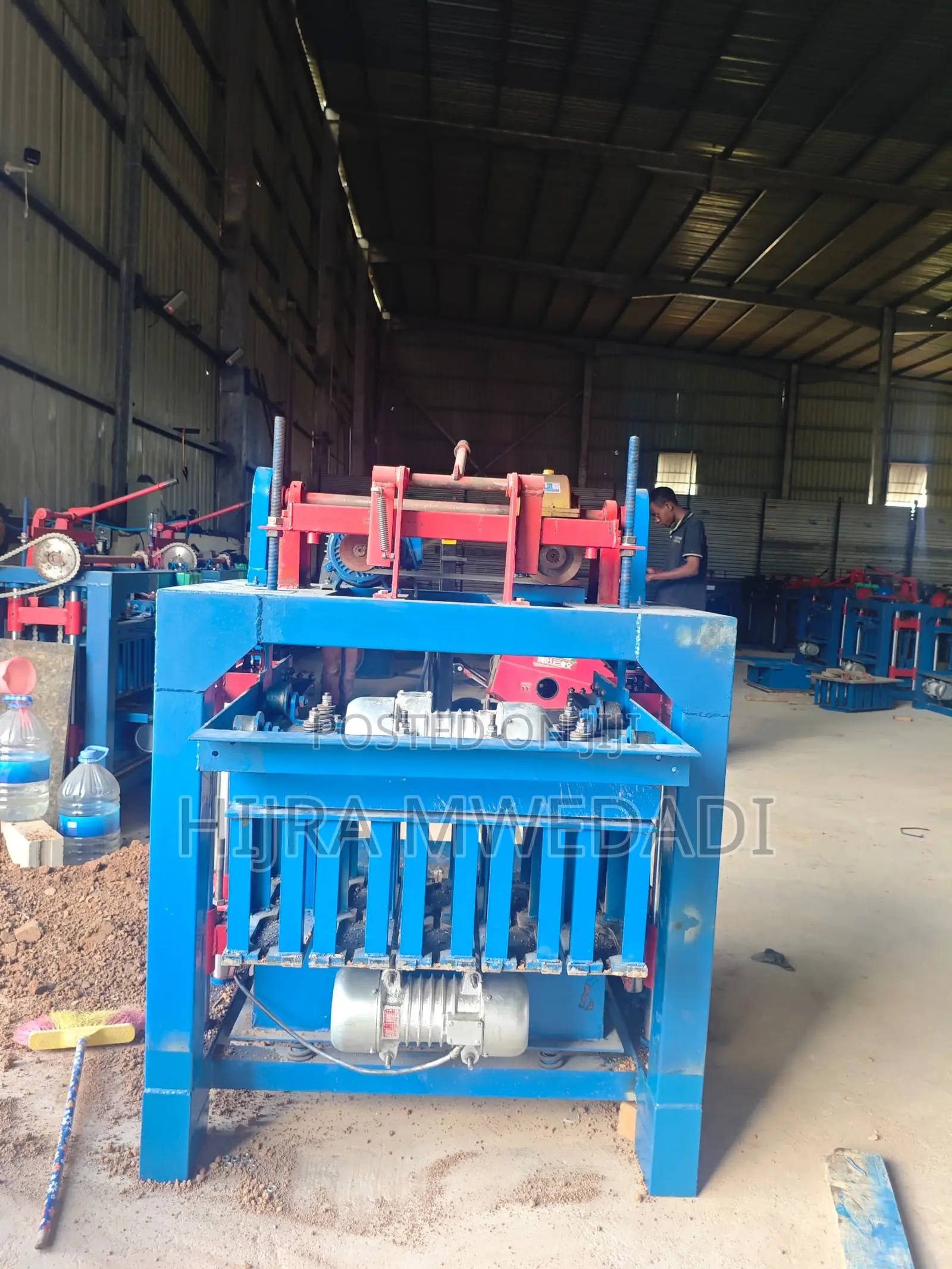

QMJ4-35A Semi-Automatic Block Making Machine
The QMJ4-35A is a semi-automatic machine designed for producing concrete blocks. It uses vibration and moulding to produce strong and uniform blocks.
Technical specifications:
Moulding cycle: 35 seconds
Motor power: 4.8 kW
Theoretical 8-hour output: up to 3,000 pieces
Block size shown: 400 × 200 × 200 mm
Machine dimensions: 1230 × 1300 × 1450 mm
Machine weight: 580 kg
Equipped with upper and lower vibration motors
Has a control handle, switch, lifting shaft, mould box and frame
