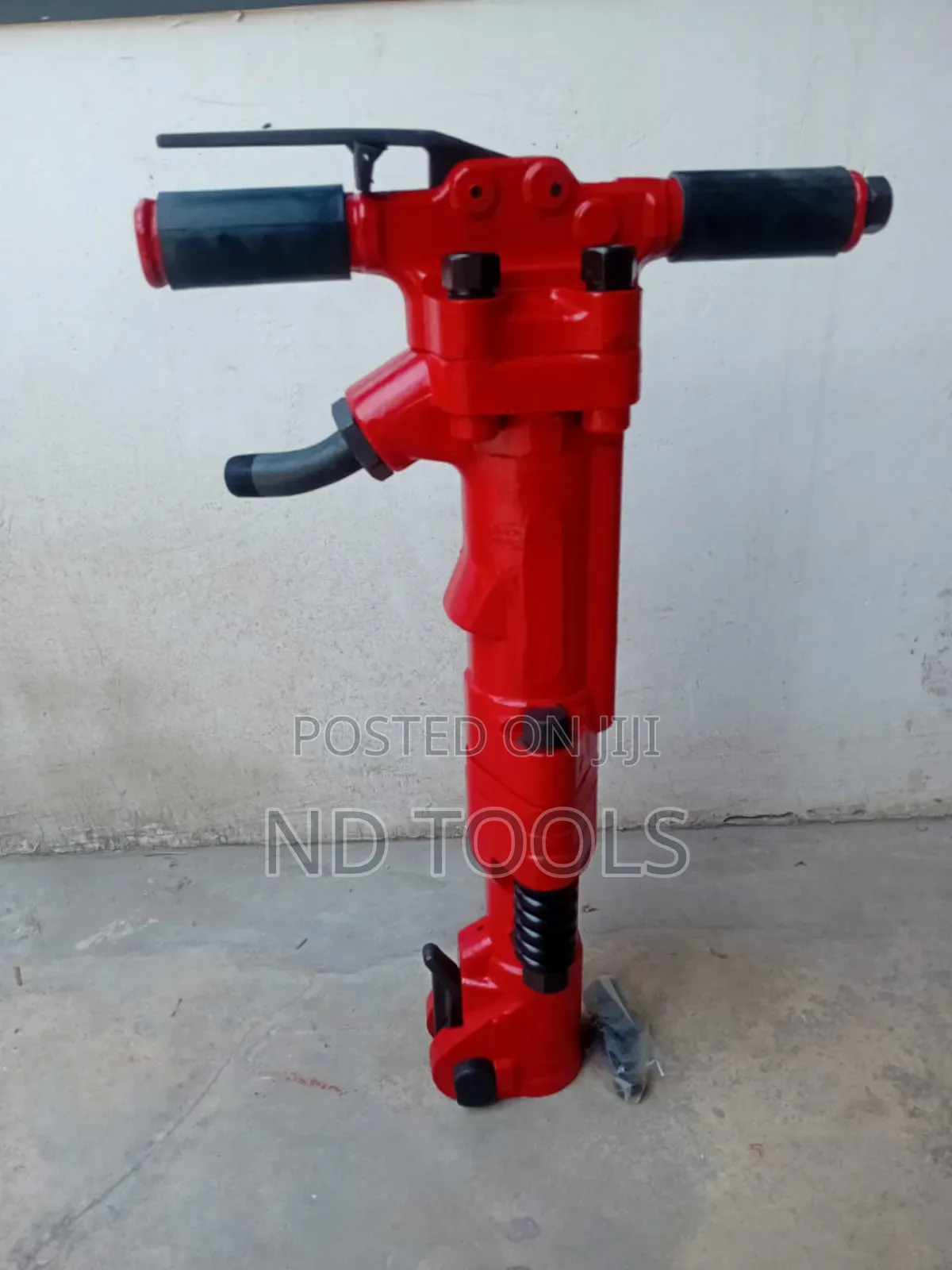

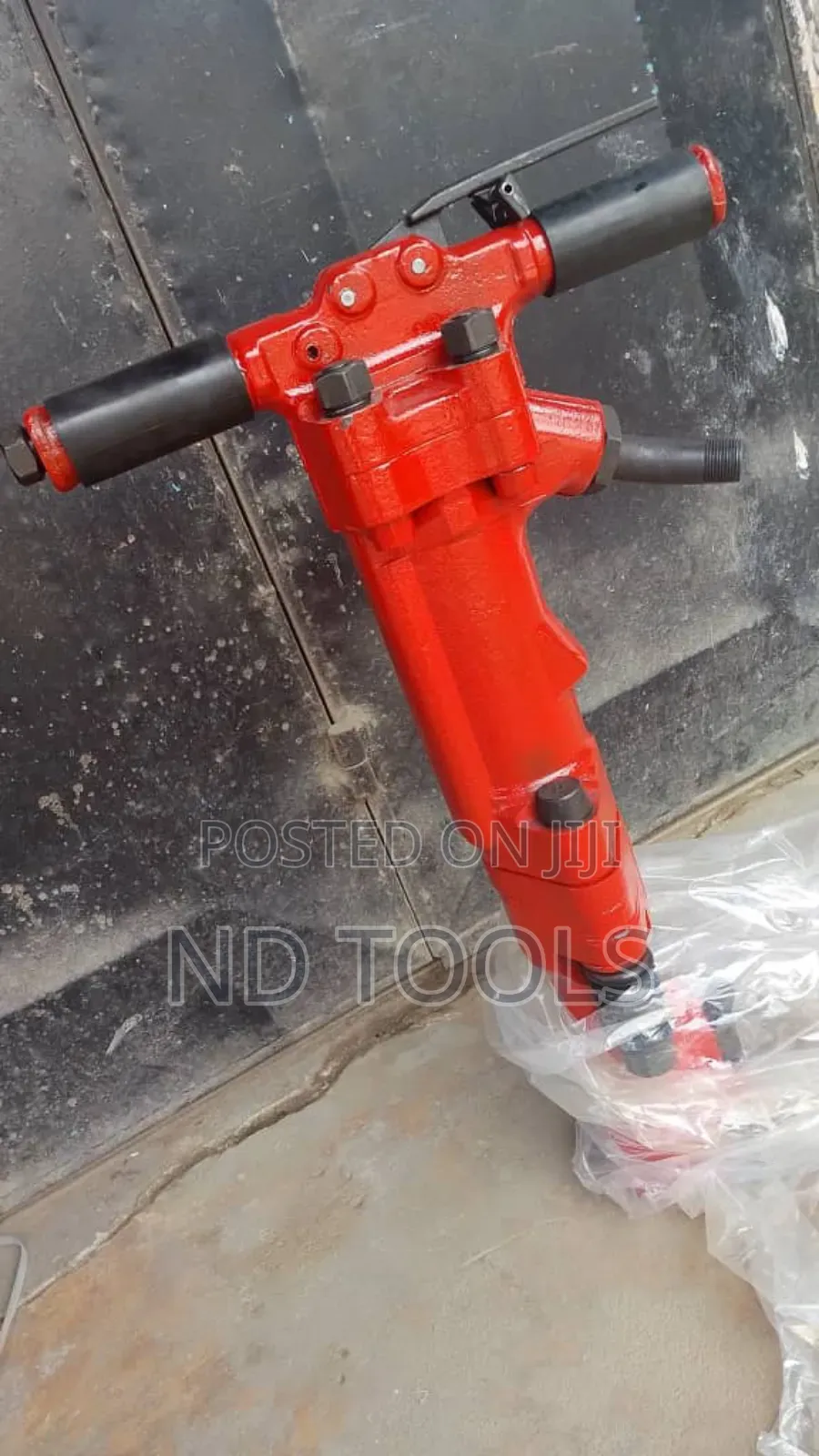

The TPB-60 is a heavy-duty pneumatic (air-powered) breaker designed for breaking concrete, asphalt, and other hard materials in construction, mining, and road maintenance.
Specifications
-Model: TPB-60
-Type: Pneumatic Concrete Breaker
-Air Pressure: 0.63 MPa (≈ 90 psi)
-Air Consumption: About 34 L/s
-Impact Frequency: Approx. 1,400 blows per minute
-Piston Stroke: 100 mm
-Piston Diameter: 44.5 mm
-Weight: Around 30 kg
-Length: 660 mm
-Air Inlet Size: 3/4 inch
-Shank Size: 1-1/8 inch × 6 inch (standard)
-Handle Type: “T”-shaped with vibration damping grip
