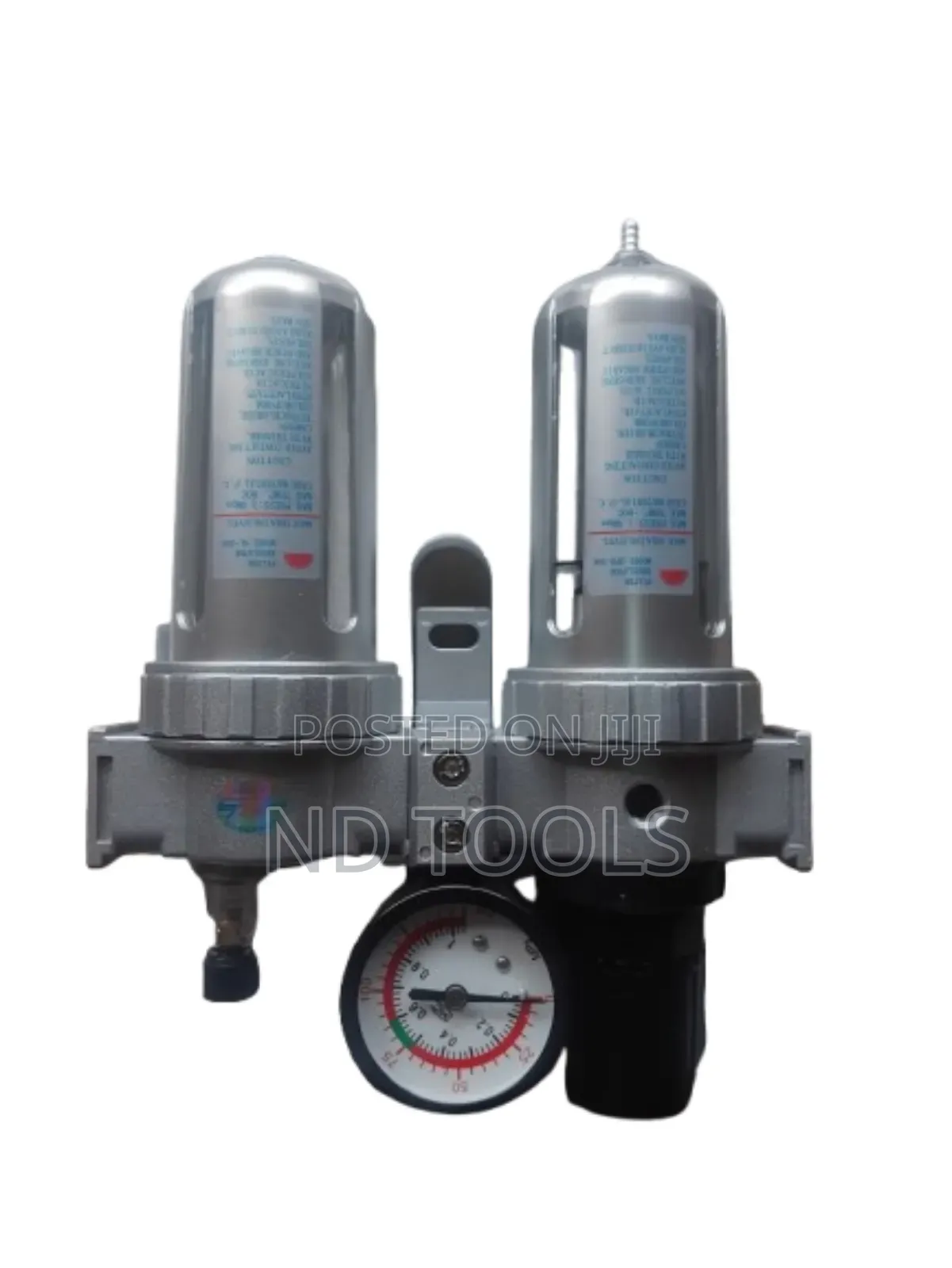

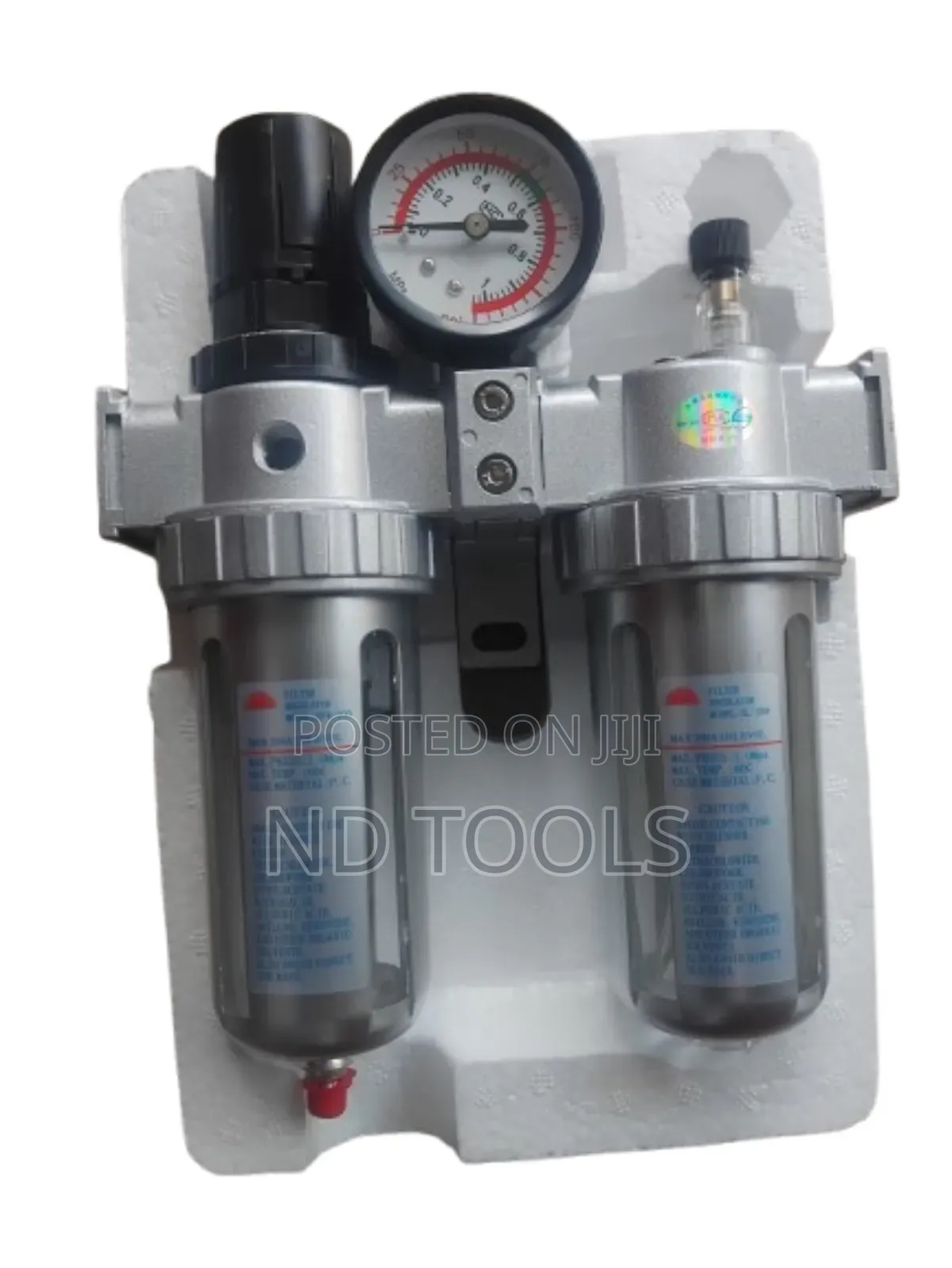

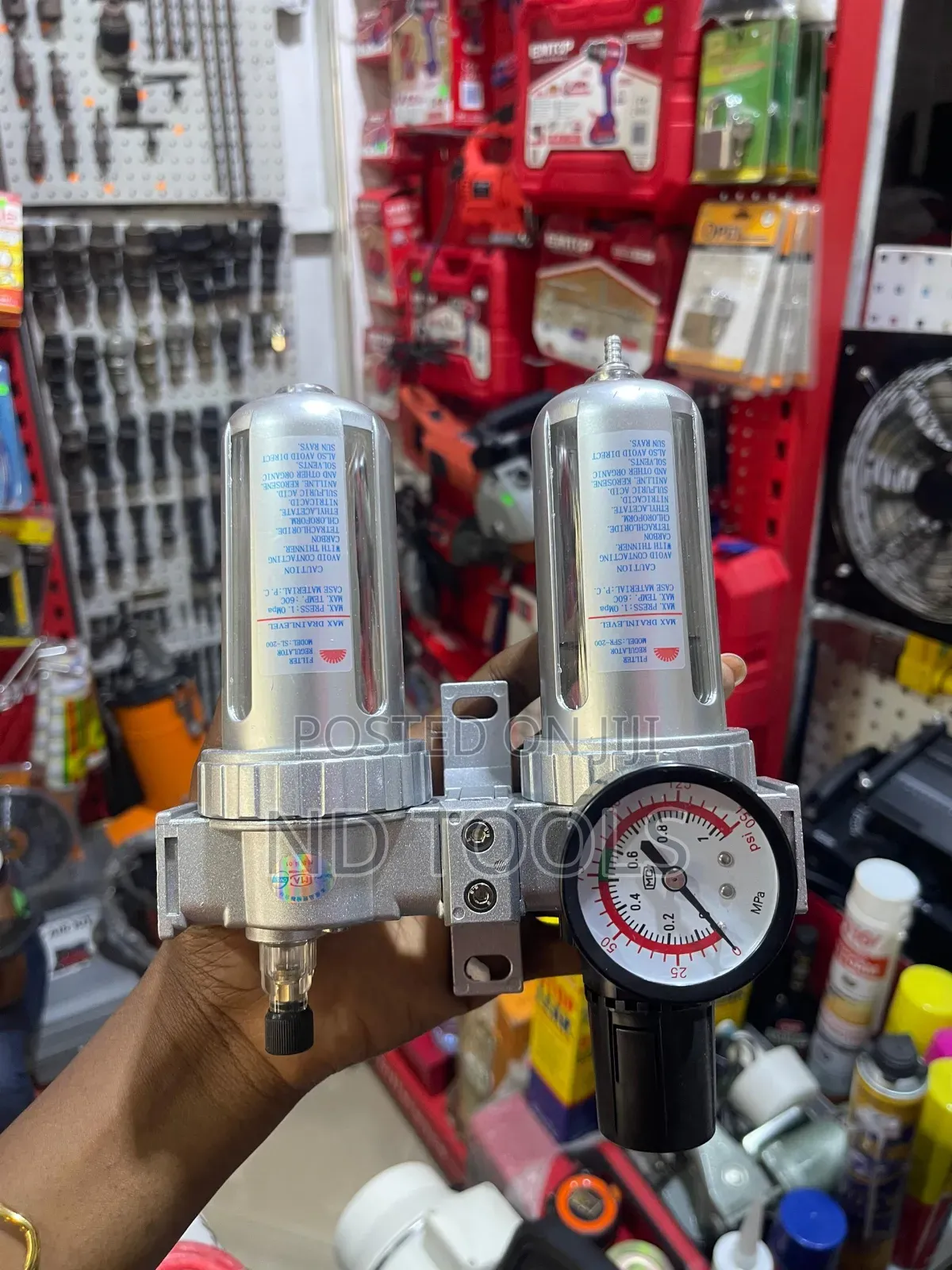

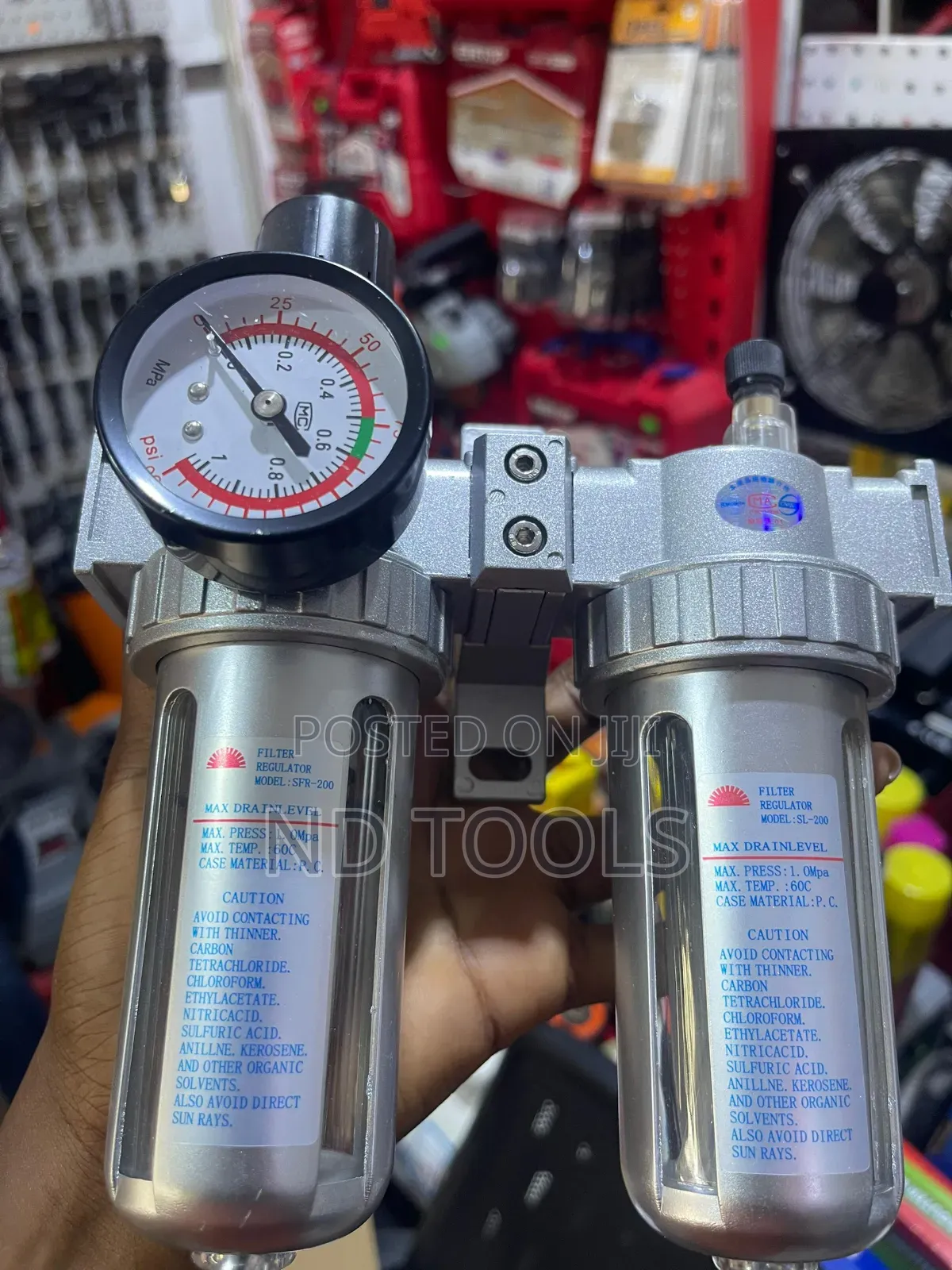

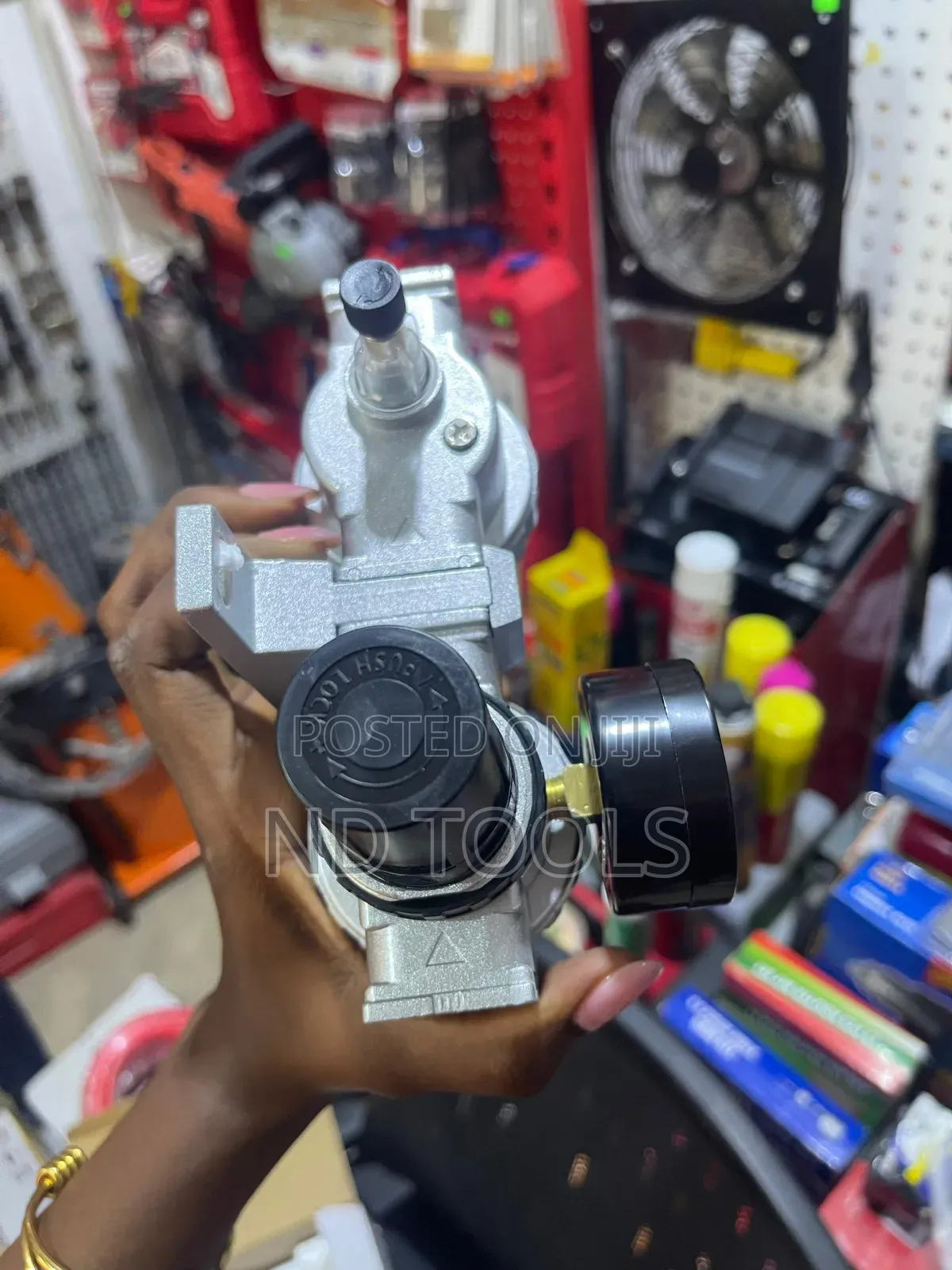

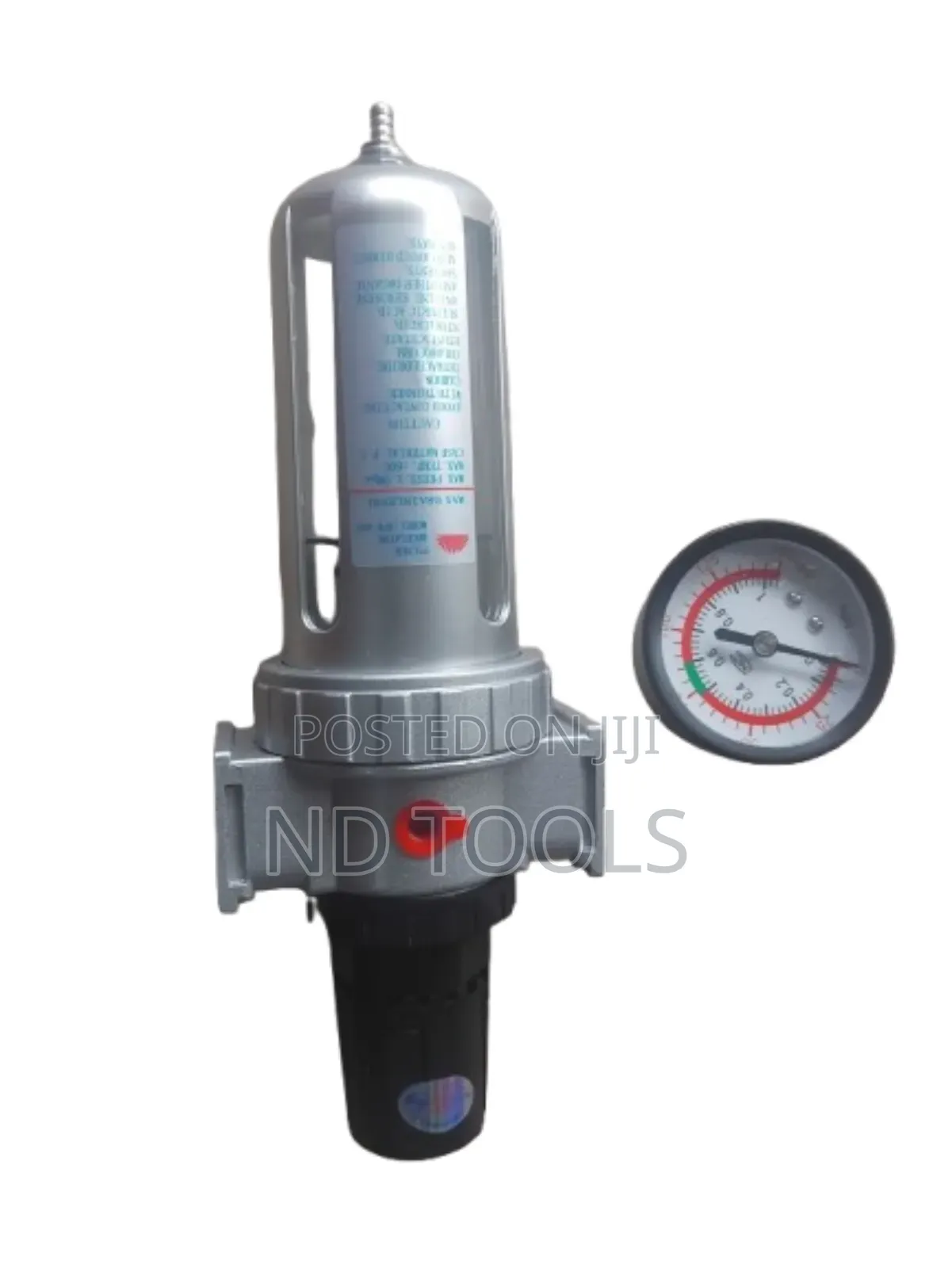

Is a combined unit that filters out particulates and moisture from compressed air and regulates the pressure to a consistent level required for downstream pneumatic tools or equipment.
Specificatio of air filter regulator sfr 200 / pneumatic air filter
- model sfr 200
-port size 1/4" npt or bsp
-max input pressure 1.0 mpa (145 psi)
-regulated pressure range 0.05 – 0.85 mpa (7 – 120 psi)
-filtration accuracy 40 μm (standard), 5 μm (optional)
-bowl capacity ~15-25 cc
- operating temperature 5 – 60°c (41 140°f)
- body material aluminium alloy

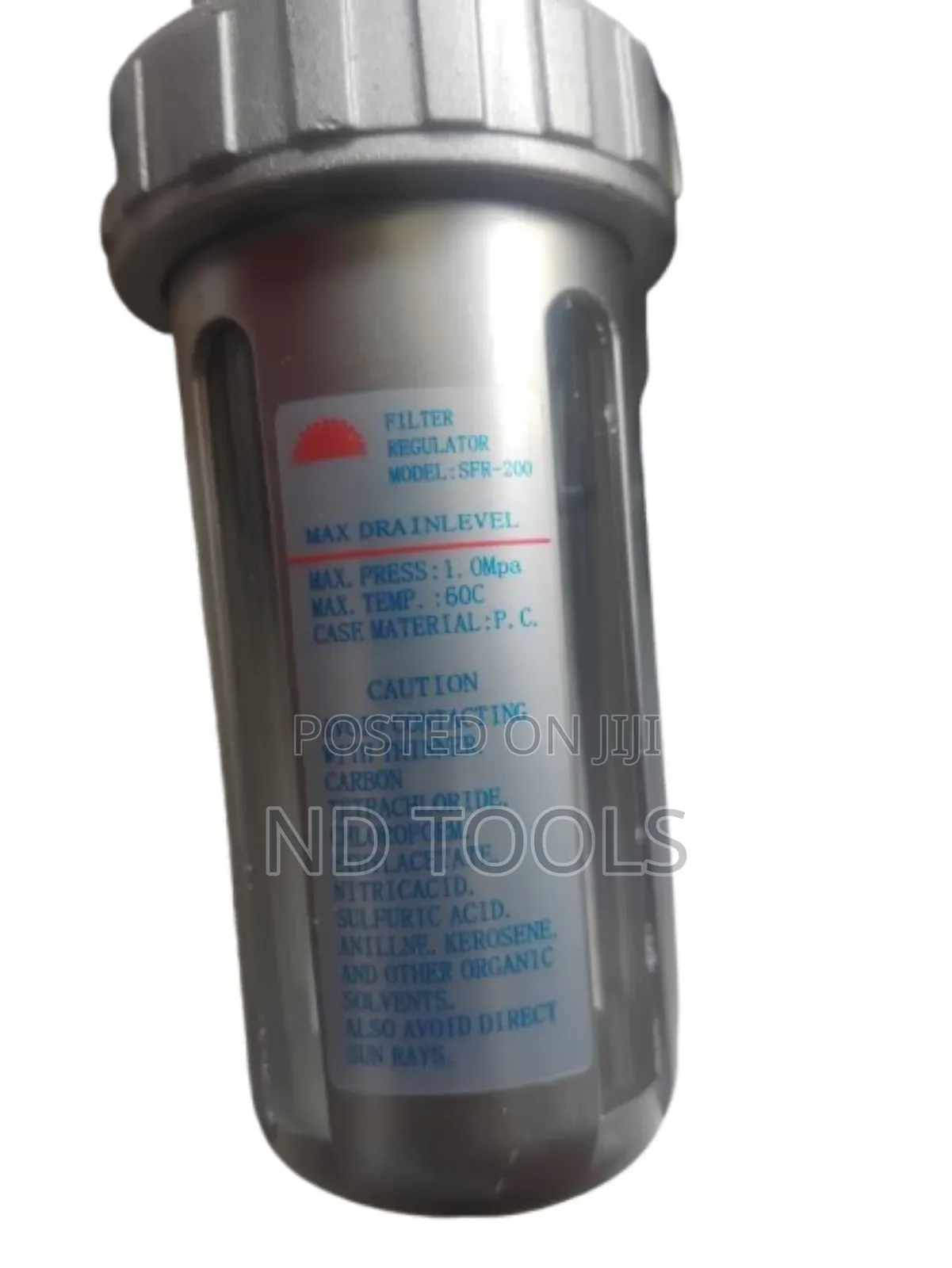

- bowl material polycarbonate with metal guard
Weight ~250 – 350g
- pressure gauge port for monitoring output pressure
