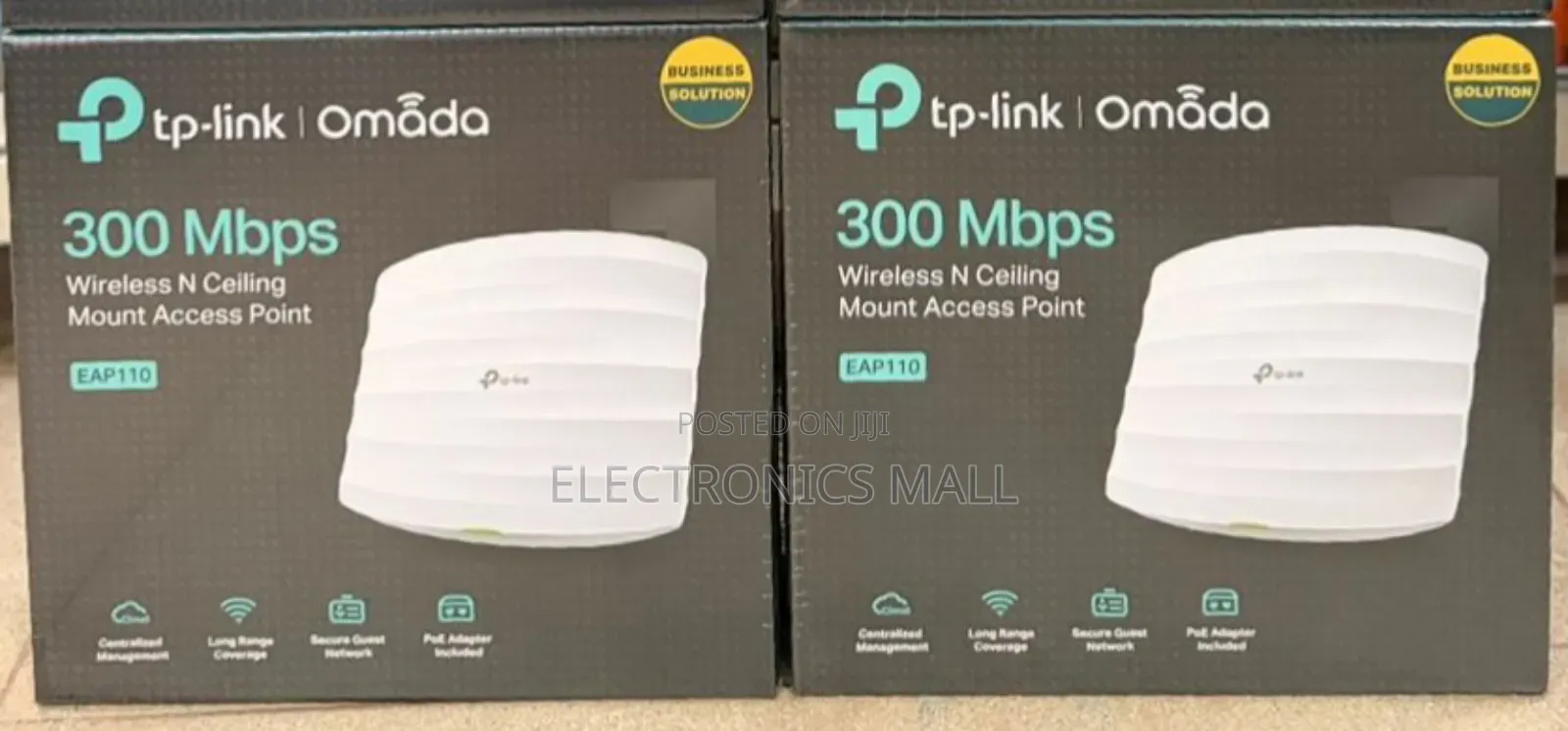

The TP-Link EAP110 Ceiling Mount Access Point is a 2.4GHz 300Mbps Wi-Fi 4 (802.11n) device designed for high-density, indoor business environments. It supports Passive PoE for flexible installation, features 8 SSIDs, and works with Omada software/hardware controllers for centralized management. It includes 2x 3dBi/4dBi antennas and supports up to 100+ concurrent clients.
Key Technical Specifications:
Wireless Standard: IEEE 802.11n/g/b (2.4GHz).
Speed: 300Mbps on 2.4GHz.
Coverage: Up to 60m2 (650ft2).
Antennas: 2x Internal 3dBi or 4dBi omni-directional antennas.
Interface: 1x 10/100Mbps Ethernet (RJ45) Port (supports Passive PoE).
Power Supply: 24VDC / 1.0A Passive PoE.
Max Power Consumption: 7.7 W.
Dimensions: 189.4 x 172.3 x 29.5 mm or 189.5x170.5x29.7 mm (depending on version).
Mounting: Ceiling/Wall mounting kits included.
