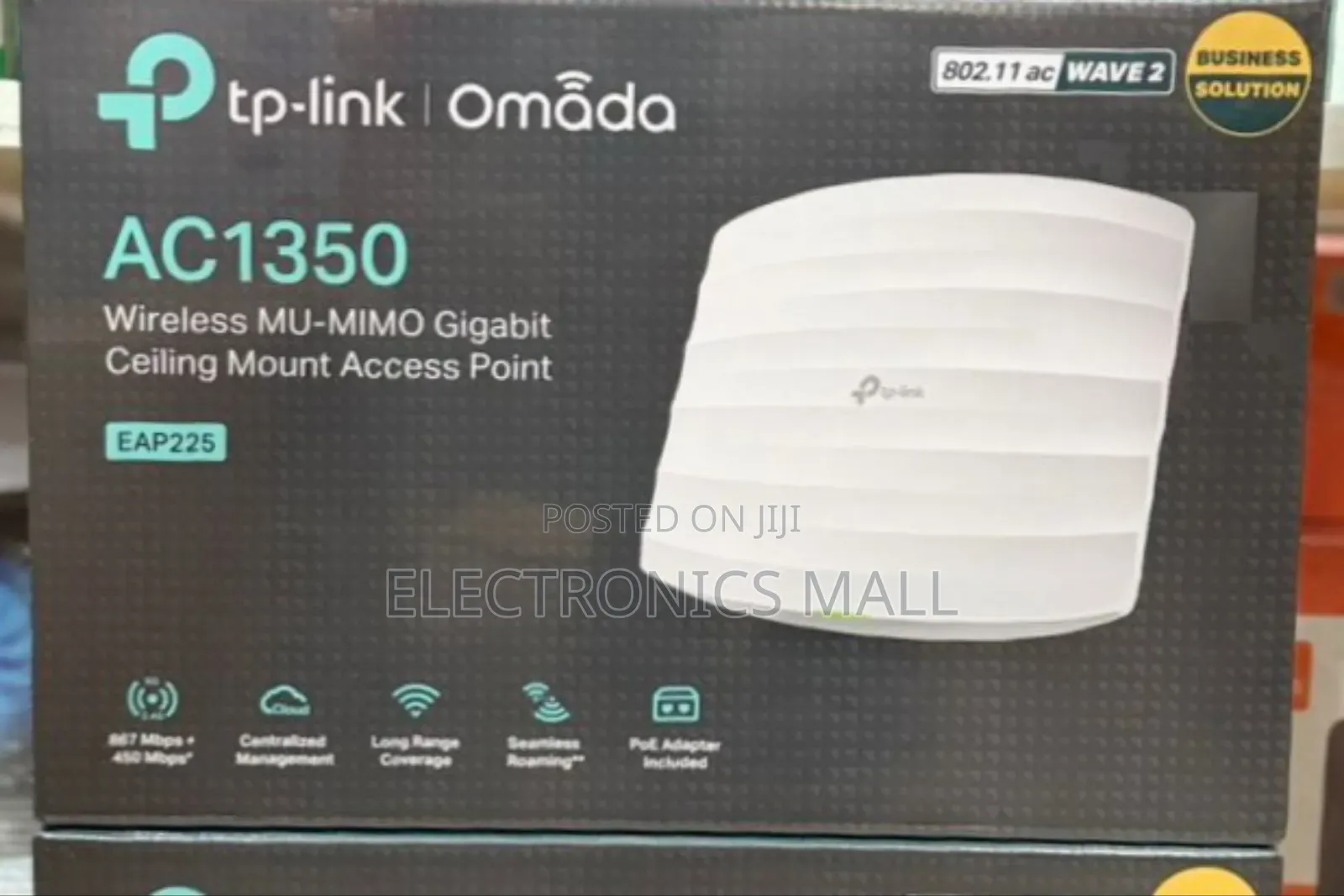

The tp-link eap225 (v3) is a ceiling-mount, ac1350 dual-band gigabit indoor access point, supporting speeds up to 450 mbps on 2.4 ghz and 867 mbps on 5 ghz. it features mu-mimo technology centralized management via the omada sdn platform (app or controller), and poe support for flexible installation
core technical specifications
standards: ieee 802.11ac/n/g/b/a
speed: ac1350 (450 m ghz 867 mbps at 5 ghz)
antenna: 3 internal omni antennas (2.4 ghz: 4 dbi, 5 ghz: 5 dbi)
interface: 1 gigabit ethernet (rj-45) port (supports 802.3af poe and passive poe).
mu-mimo: supports 2x2 mu-mimo.
wireless and management features
management: omada cloud/controller (oc300/oc200, software controller) and app.
security: wpa/wpa2-enterprise/personal, captive portal, mac filtering, vlan mapping.
roaming: supports seamless roaming (ieee 802.11k/v).
