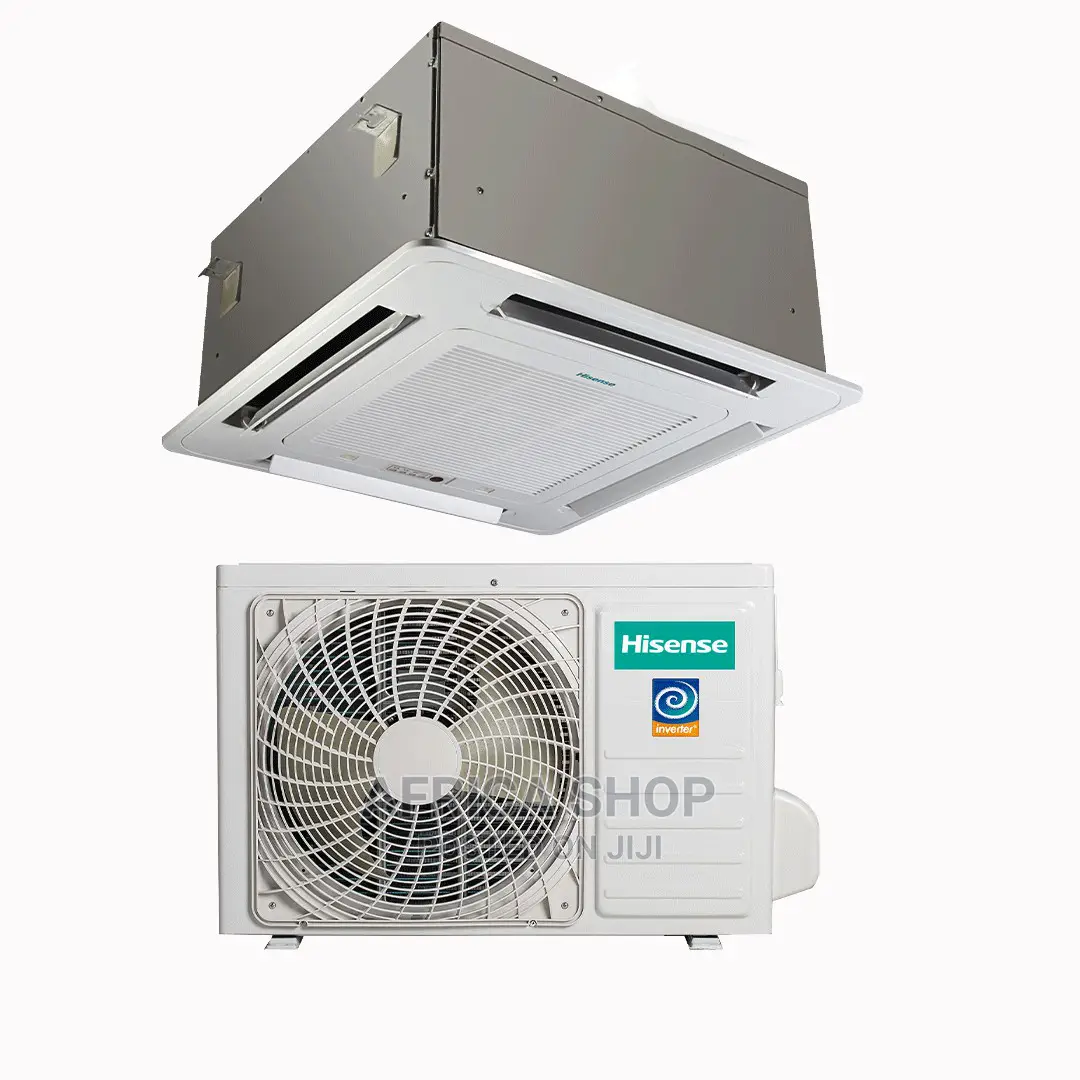

Model no. auc 18cr4ssaa2
power supply (indoor) v-ph-hz 220~240-1-50
power supply (outdoor) v-ph-hz 220~240-1-50
max. input consumption w 2060
max. input current a 11.7
cooling capacity w 5200(1990 ~ 5570)
input w 1680
current a 7.50
eer w/w 3.10
heating capacity w 6200(1690~6550)
input w 1820
current a 8.2
indoor air flow rated(hi/med/lo) m3/h 850/730/630
indoor air flow rated(cfm) 500/429/370
indoor noise level (hi/med/lo) db(a) 47/44/41
indoor unit dimension (wxhxd) mm 650x270x570
net/gross weight kg 21 /25.5
drainage water pipe diameter mm dφ21
controller remote controller
qty’per 20’ /40’ /40’hq indoor 147/315/384
compressor model atn150d42ufz
outdoor noise level (sound pressure) db(a) 50
dimension(wxdxh) mm 810×584×281
charged volume kg 1.24
refrigerant piping liquid side/ gas side mm(inch) φ6.35/φ12.7(1/4’/1/2‘)
max. pipe length m 30
max. difference in level m 15
qty’per 20’ /40’ /40’hq outdoor unit 102/204/272
qty’per 20’ /40’ /40’hq indoor+outdoor 62/130/158
