Brand name
mantra
model number
mfs500
resolution
500 dpi
support system
android, linux, windows
customized support
oem, odm
material
plastic
product name

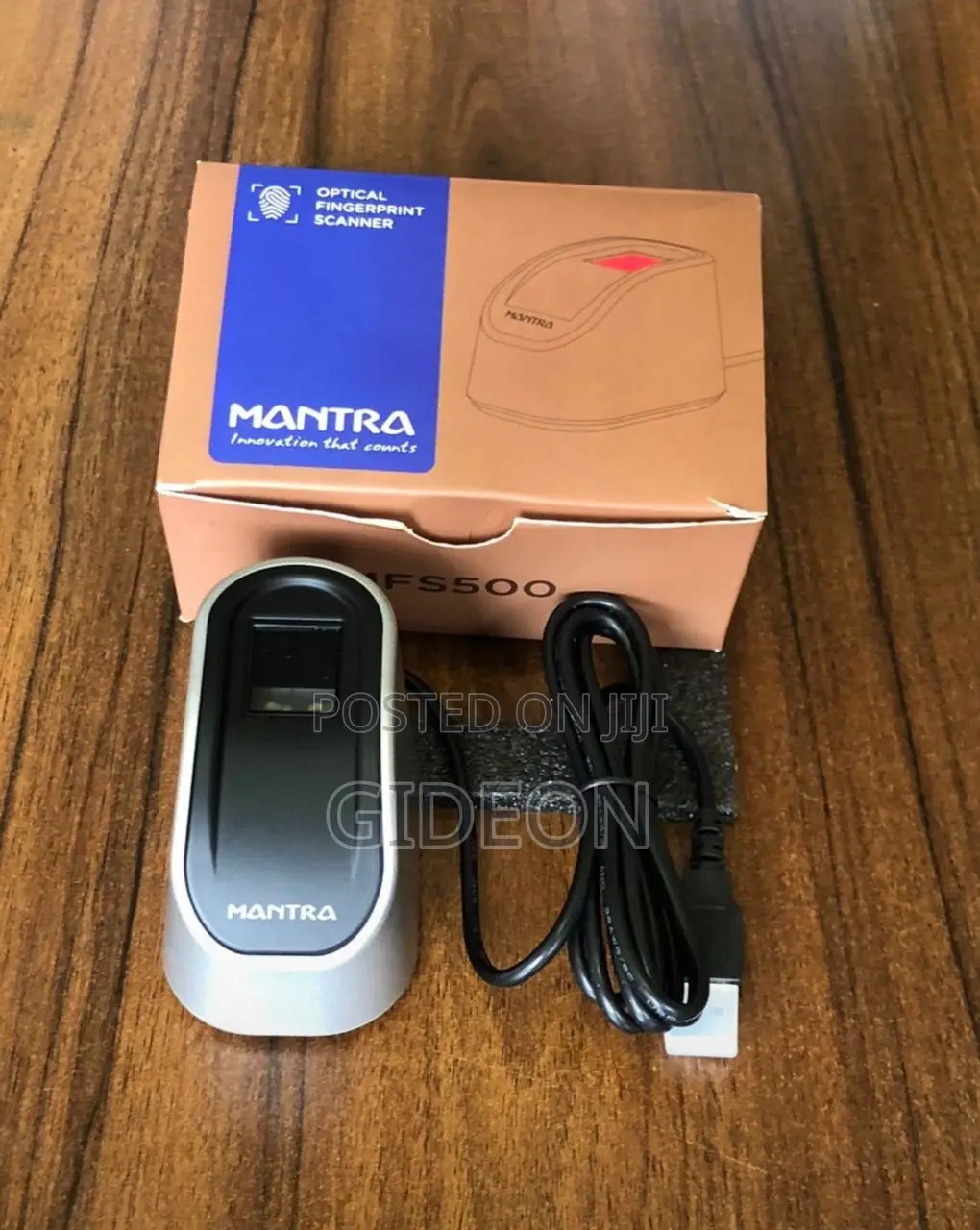

mantra mfs500
fingerprint sensor
optical scratch-free sensor
spatial resolution
500 dpi +/- 2%
platen size
16.4 mm x 20.0 mm
sensing area
15 mm x 18 mm
image size
296 x 354 pixels
light source
red led
maximum acquisition time
< 2 sec
capture mode
auto finger detection & auto capture with built-in quality check
operating voltage
5v +/- 5% (usb powered device)
interface
usb 2.0
biometric data interchange format
iso 19794-2, iso 19794-4, ansi 378, wsq3.1, jpeg2000
environmental, health and safety
rohs
safety
en / iec 60950
emi / emc compliance
ce & fcc part 15 b class a
image quality
fbi piv certification, mobile-id fap10
ip rating
operating system
windows 11/10/8/7, linux, android
